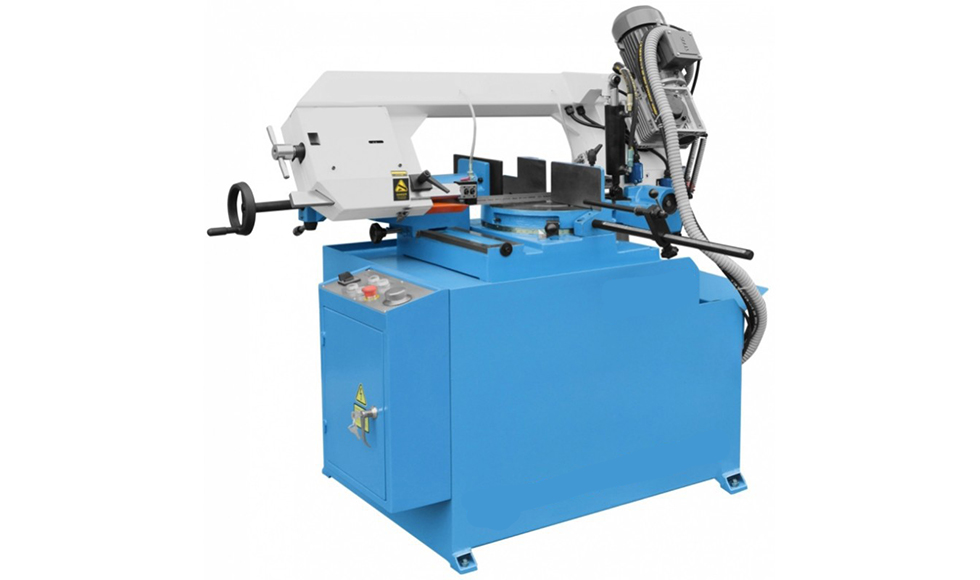

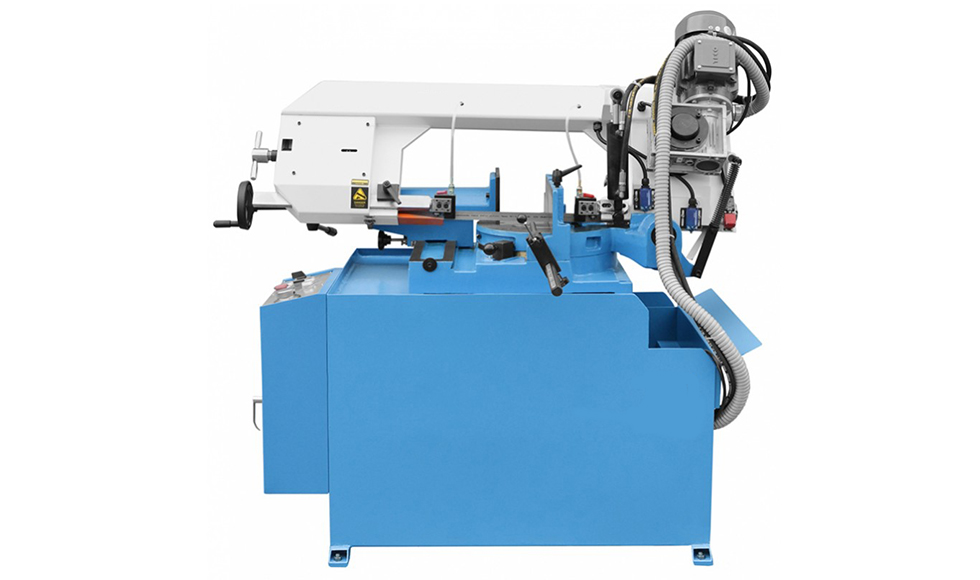

Pivot Type BS-240APivot Type
Technical data:
Default equipment

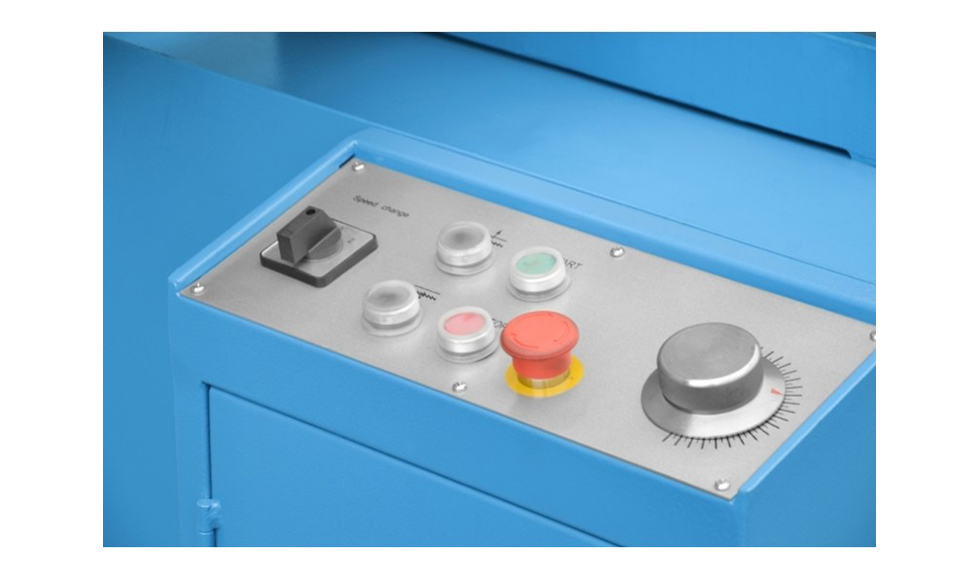

Control panel on separate component

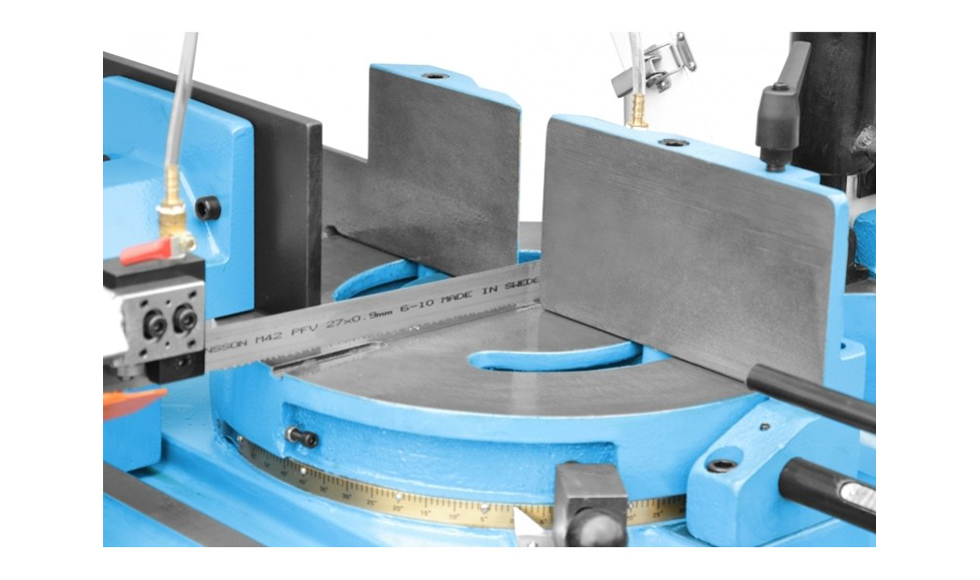

Cutting at angles of L/R 45° - 0° - 45° - 60°
Brush for cleaning band
Cooling system
Bi-metal band saw
EC Declaration of Conformity
User manual
Type | Manual up saw bow |
Arm raising and lowering | hydraulic with smooth arm lowering control |
Band speed | 36/70 M/min |
Angled cutting | left to 45°, right to 60° |

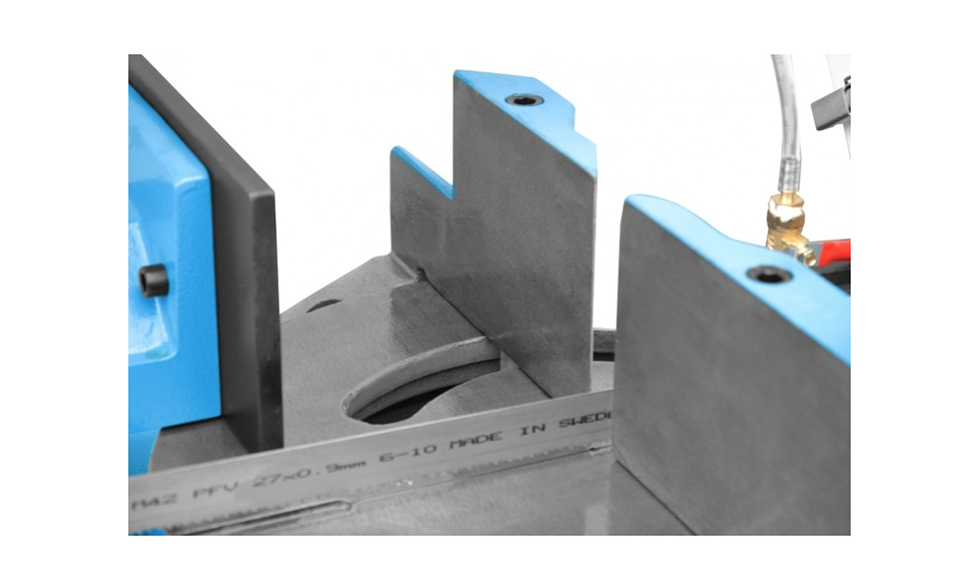

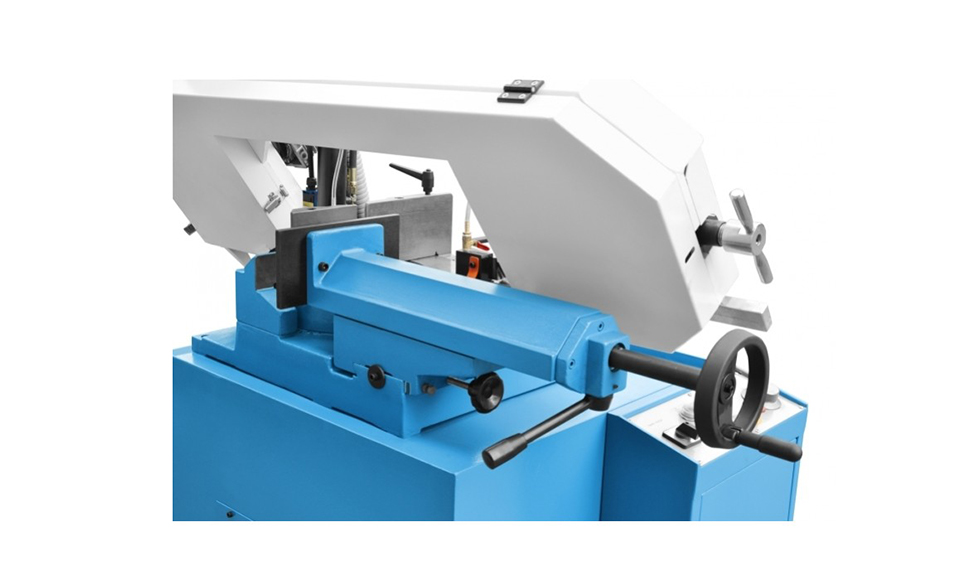

Vice | manual |
Minimum cutting diameter | Ø 5 mm |
Minimum material length in vice | 30 mm |
Vice base height | 780 mm |
Cutting band dimensions | 27×0.9×2910 mm |
Total power | 2.1 kW |
Dimensions (LxWxH) | 1600×800×1400 mm |
Weight | 470 kg |
Angle | ● | ■ | ■ |
0º | ø250 | 320×240 | 240×240 |
45º L | ø200 | 220×120 | 190×190 |
45º P | ø220 | 235×120 | 210×210 |
60º P | ø110 | 155×110 | 100×100 |
