Economical type BH-7065 Economical type

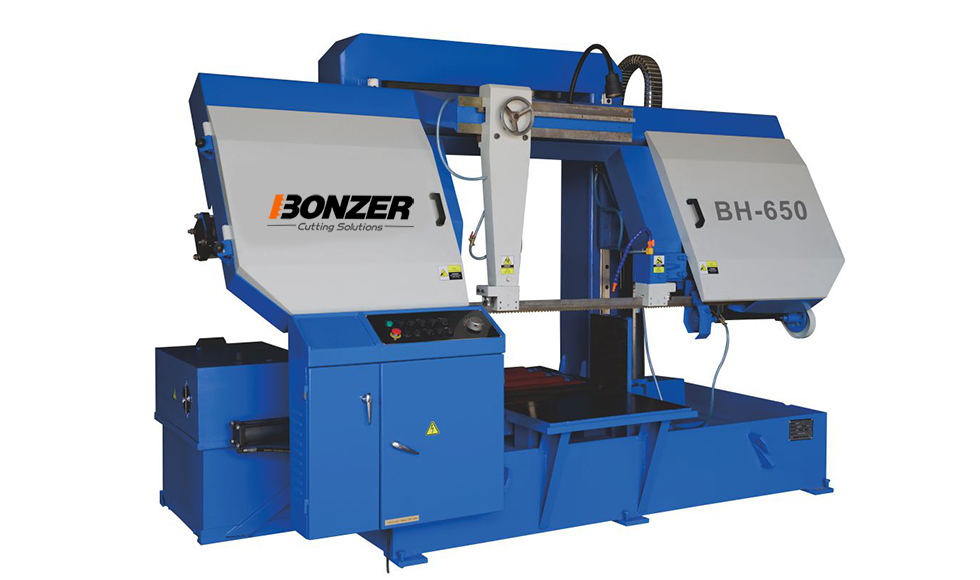

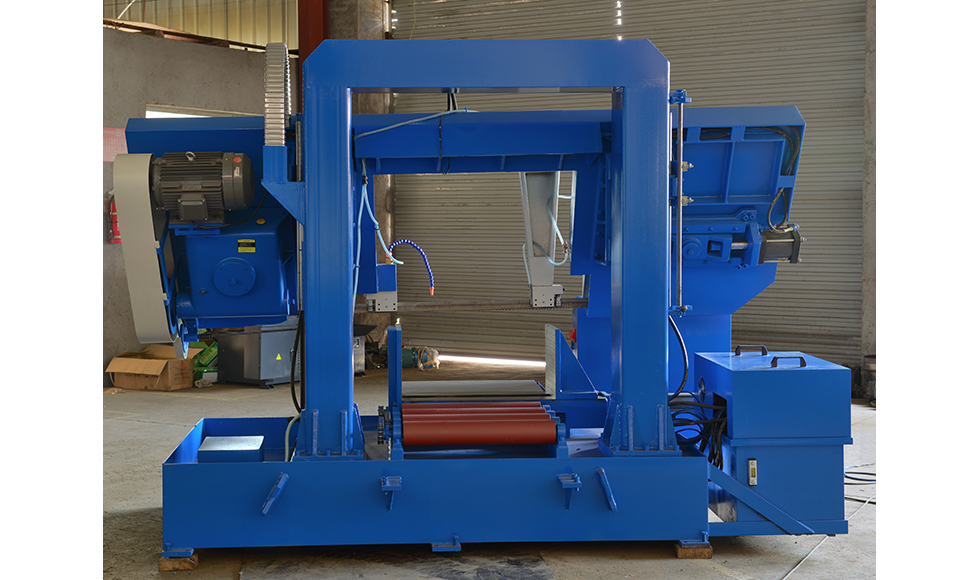

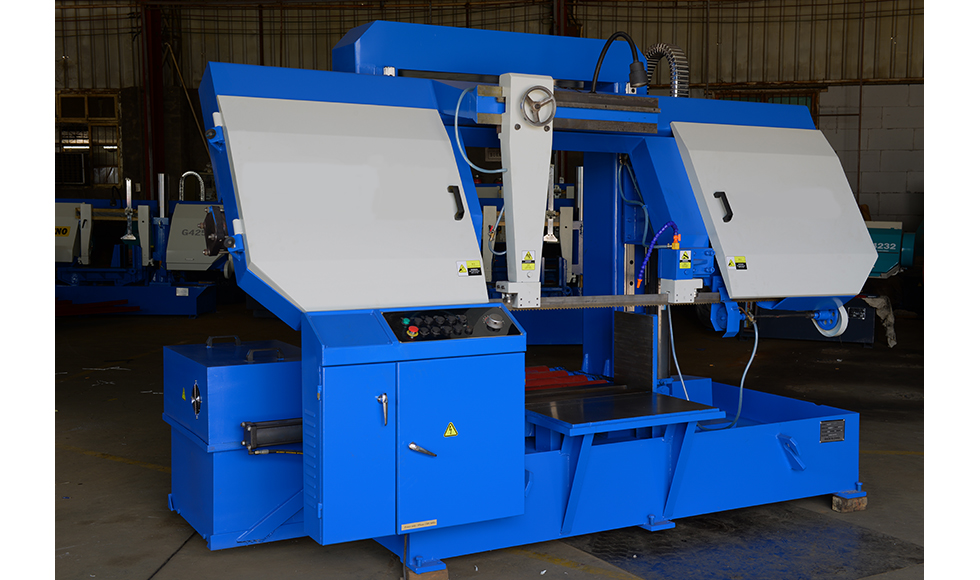

BH-7065 Double Column Semi Automatic
Model Name BH-7065 Double Column Semi Automatic
Max. cutting
Round      650mm
Quadrate    700×650mm
Saw Blade
Speed 20/45/69 or Option (Inverter 20 to 75m/min)
Size 41×1.25×7100mm
Guides Carbide and bearing blade guides
Cleaning Power wire brush & flood coolant
Tension Manual tension saw blade
Motor output Blade 5.5kw
Hydraulic 1.5kw
Coolant 0.09kw
Work Vise Hydraulic jaw vise
Machine Weight 3200kg
Packing Size(L×W×H) 3800×1650×2200mm
Container Loads 3sets/one 40”container
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
