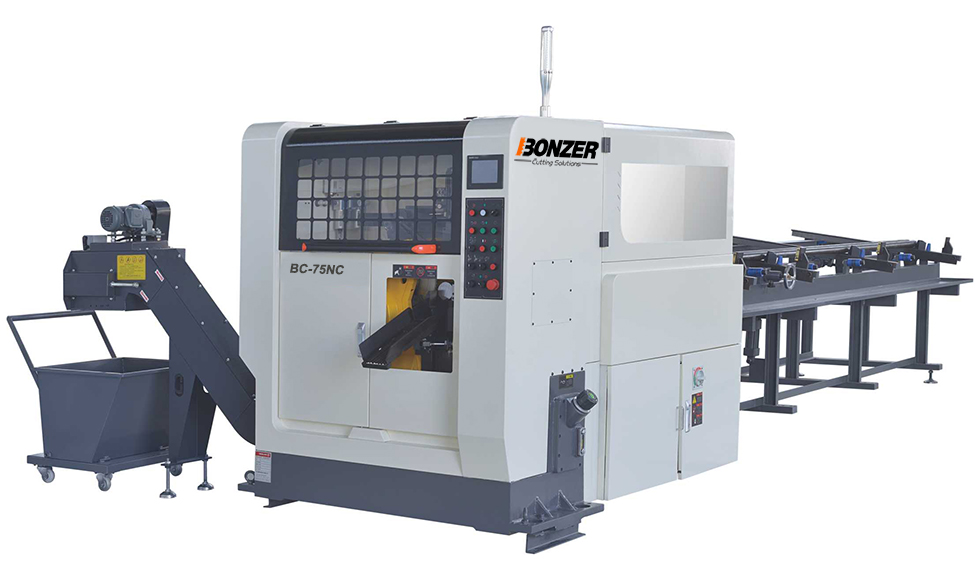

Pivot/Hinge Type BC-75NCPivot/Hinge Type
NC HIGH SPEED HEAVY DUTY CARBIDE CIRCULAR SAW
(HYDRAULIC & SERVO MOTOR FEEDRATE)
(HYDRAULIC & SERVO MOTOR FEEDRATE)
| Cut-off Capacity | BC-75NC |
| Round Bar ● | 10 ~ 75mm |
| Square Bar ■ | 10 ~ 60mm |
| Round Tube ○ | 10 ~75mm |
| Square Tube □ | 10 ~ 60mm |
| Saw Head & Spindle | |
| TCT Carbide tipped sawblade | Ø285/315x 2.0 t mm |
| Sawblade rotation speed | 20-170 rpm / Variable speed |
|
Chip removal Single stroke Multiple Stroke |
Steel brush disk 6-800mm 9999 |
| Motor | |
| Spindle driving motor | 7.5 kw / 4p |
| Hydraulic pump motor | 2.2 kw / 4p |
| AC servo motor / Saw head | 1.5kw (Mitsubishi) |
| Coolant | oil mist |
| Hydraulic Device | |
| Work driving pressure | 70kg/cm2 (7MPa) |
| Tank Capacity | 90 liters |
| Pneumatic Device | |
| Work operating pressure | 4 ~ 6 kg/cm2 |
| Others | |
| Dimension (L x W) | 7100 x 2200mm |
| Main machine | 2750 kgs |
|
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice. |
|
