Taiwan type H-360NCTaiwan type

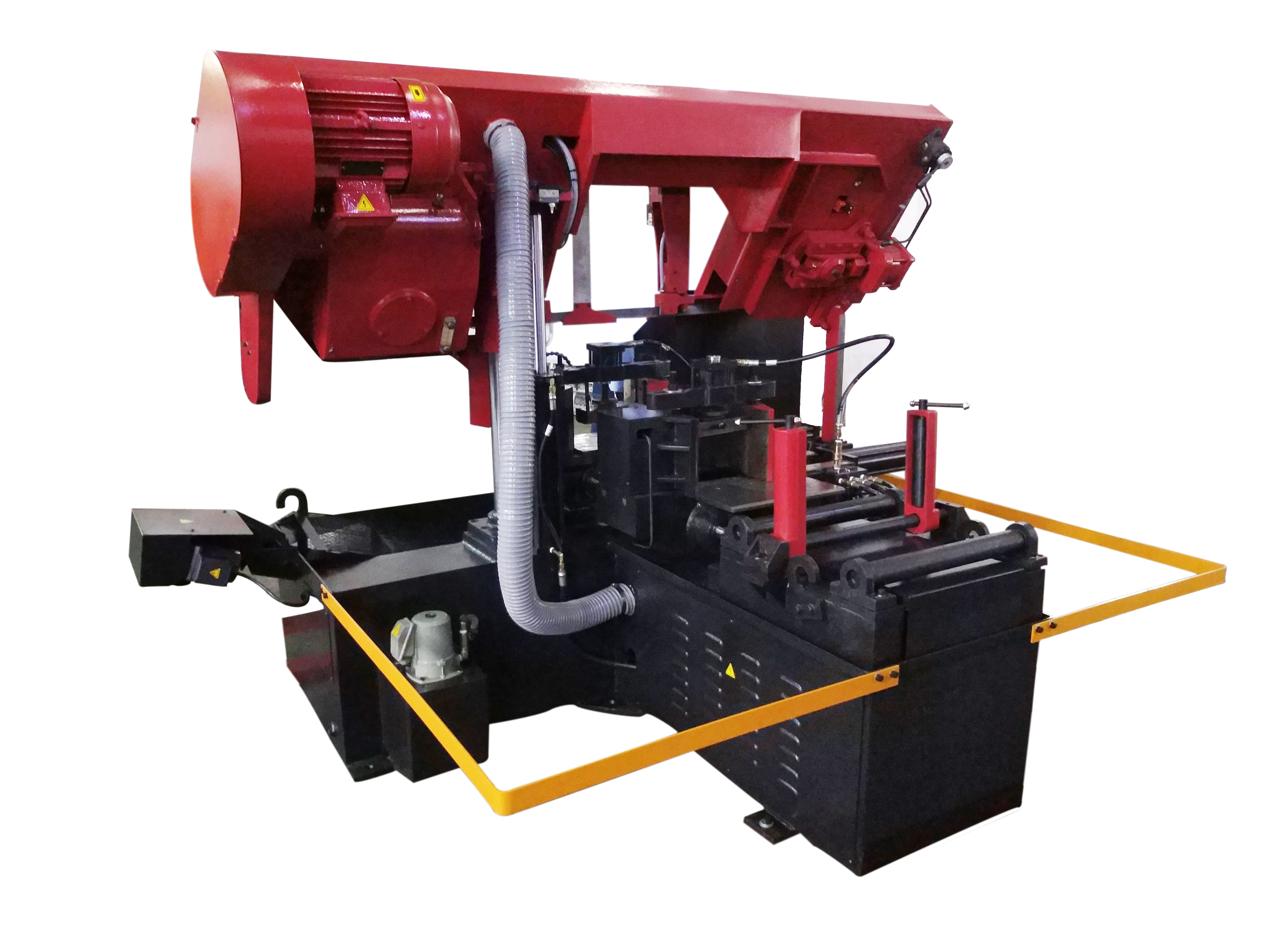

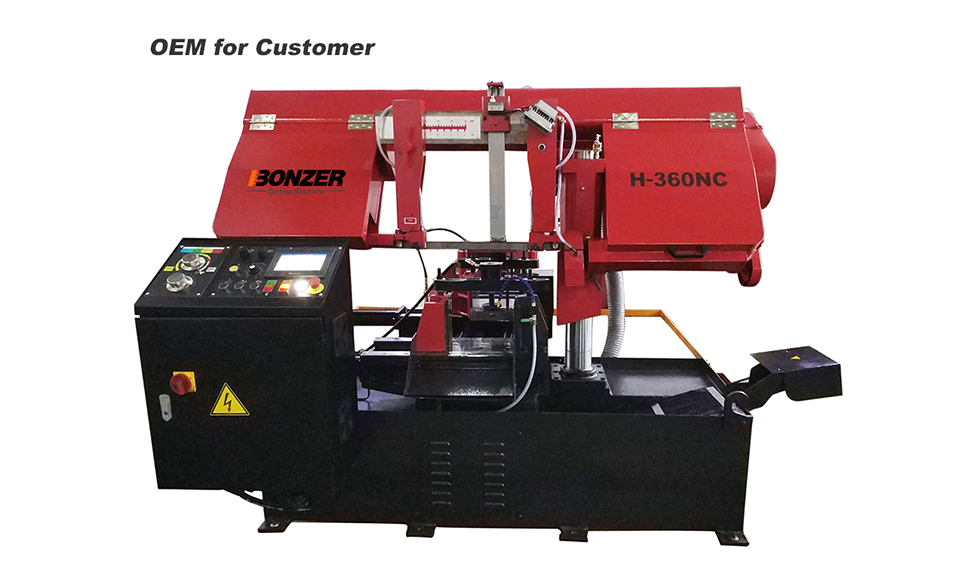

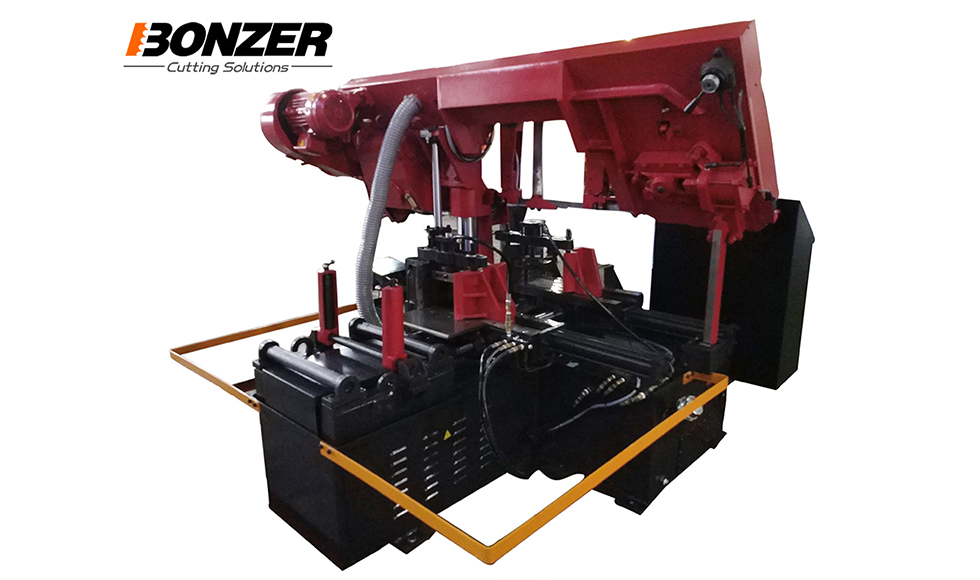

NC automatic band sawing machine H-360NC
| Model | H-360NC | |
| Capacity | ● | 360 mm (14") |
| ■ | 360 x 360 mm (14"W x 14"H) | |
| Bundle Cutting | Width | 180 to 280 mm (7" to 11") |
| Height | 50 to 160 mm (2" to 6") | |
| Blade Speed | 15 to 80 m/min. (INVERTER) | |
| Motor | Blade Drive | 4 kw (5HP) |
| Hyd. Pump | 1.5 kw (2HP) | |
| Coolant Pump | 0.1 kw (1/8HP) | |
| Blade Size | 4420 x 34 x 1.1 mm (174" x 1.3" x 0.042") | |
| Blade Tension | Hydraulic | |
| Index Length | 400 mm (16") 400 mm x 9 times (16" x 9") | |
| Machine Weight | 2100 kg (4410 lb) | |
| Floor Space (L x W) | 2500 x 2100 mm (98" x 87") | |
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
Machinery Main parts list
| Item | Name | Specification | Quantity | Manufacturer |
| 1 | Frequency motor for main motor use | 5.5 kw | 1 set | Taiwan TECO |
| 2 | Transducer (inverter) | 7.5 kw | 1 set | Taiwan SHIHLIN |
| 3 | Main hydraulic parts (oil pump motor group; magnetic valves) | 1 Unit |
SEVENOCEAN(Taiwan) OIL Motor (Taiwan) |
|
| 6 | Gear box | 1 Unit | Taiwan worm unit | |
| 7 | chip conveyor | 1 set | Yiantai Chongyan machinery | |
| 8 | Bearing | NSK or NTN (Japan) | ||

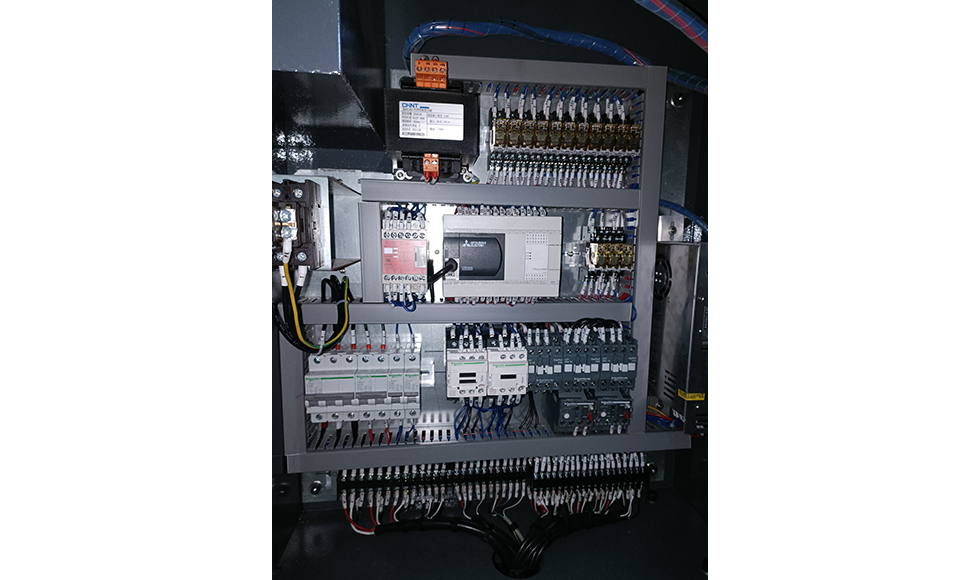

| 9 | Control electrical device | 1 Unit |
PLC MITSUBISHI (Japen)Contactors: TECO(Taiwan)Switches: Schneider Electric |
