Model |

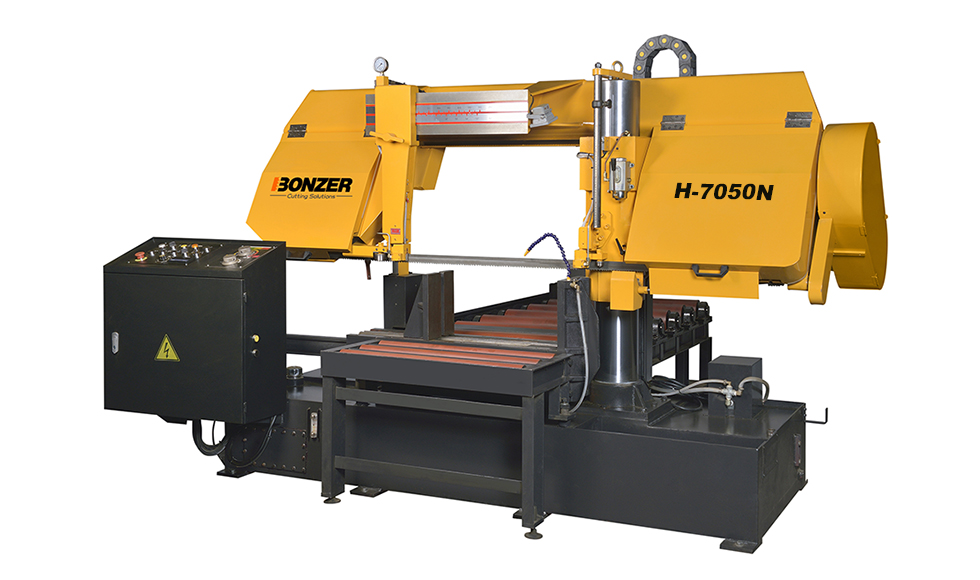

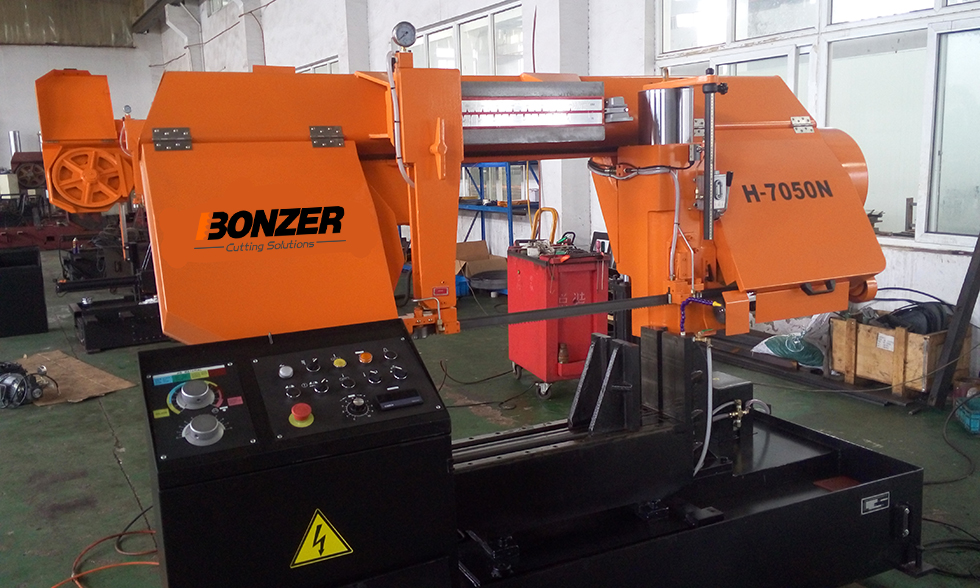

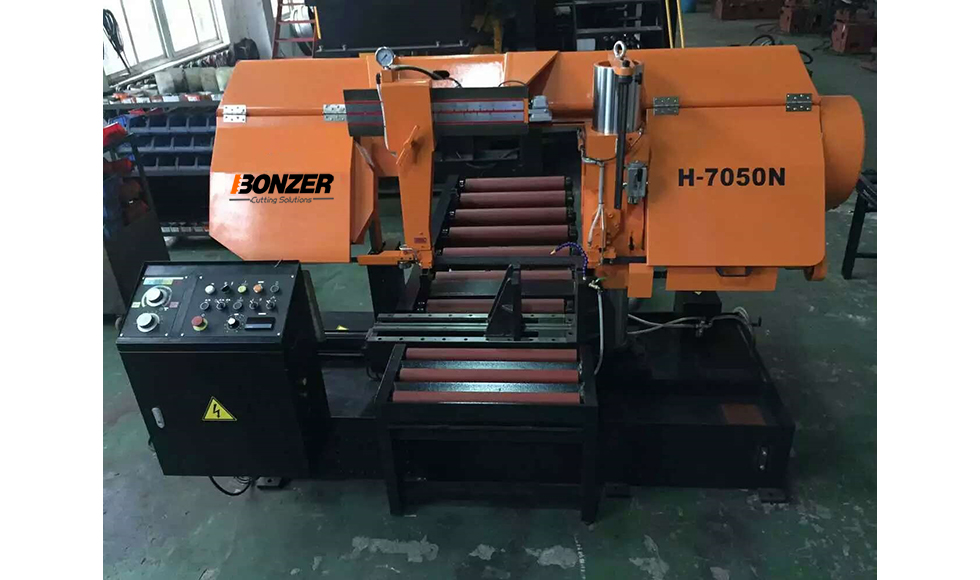

H-7050N |
|
Capacity |
● |
500 mm (20") |
|
■ |
700 x 500 mm (28" W x 20" H)
min. clamp width 165 mm (6.5") |
|
Blade Speed |
15-80 m/min by inverter |
|
Motor |
Blade Drive |
5.5 kW (7.5HP) |
|
Hyd. Pump |
1.5 kW (2HP) |
|
Coolant Pump |
0.2 kW (1/4HP) |
|
Blade Size |
5450 x 41 x 1.3 mm (214.6" x 1.6" x 0.05") |
|
Blade Tension |
Hydraulic |
|
Index Length |
- |
|
Machine Weight |
2400 kg (5280 lb) |
|
Floor Space (L x W) |
2900 x 2000 mm (106.3" x 78.7") |
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
【STANDARD FEATURES】
1. Column type down feed system with sealed bearings.
2. Hydraulic blade tension.
3. Roller bearing and hydraulically clamped carbide blade guide system.

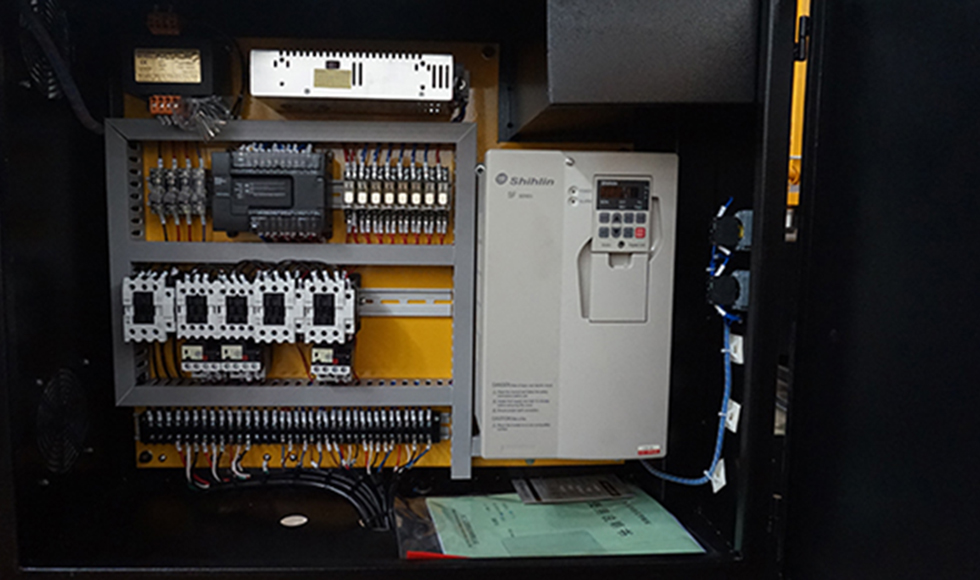

4. Infinitely variable speed controlled by inverter.
5. Split vise jaws.
6. Power driven wire brush.

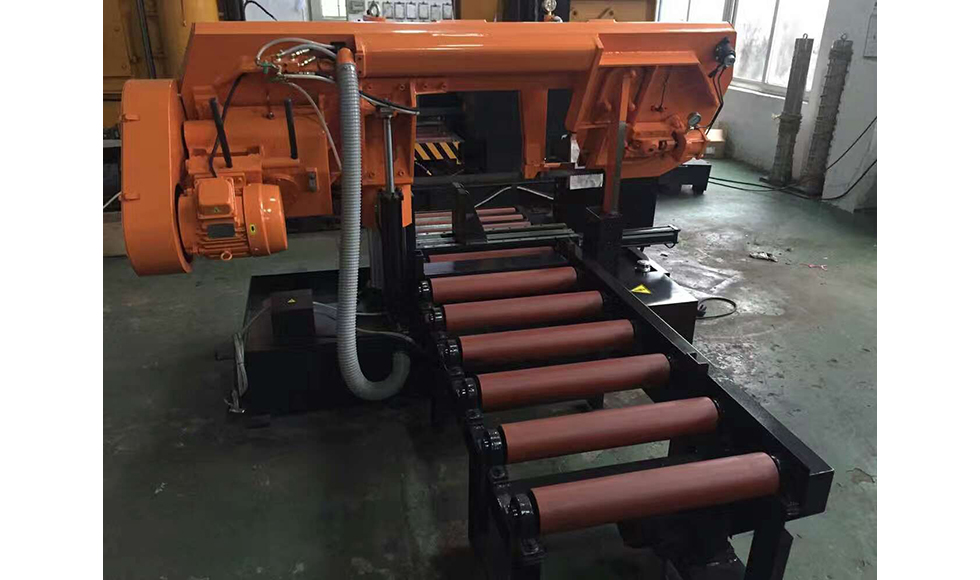

7. Infeed Power roller table 2M long
8. outfeed dead roller conveyors 0.5M long.
9. Idler wheel motion detector with blade stalling and breakage shut-off.
10. Automatic saw frame return selector.
11. Cutting fluid flushing hose for machine cleaning.
12. One M42 bi-metal saw blade.
13. One set of tools and tool box.
【OPTIONAL EQUIPMENT】
1. Automatic chip conveyor.
2. Variable vise pressure.
