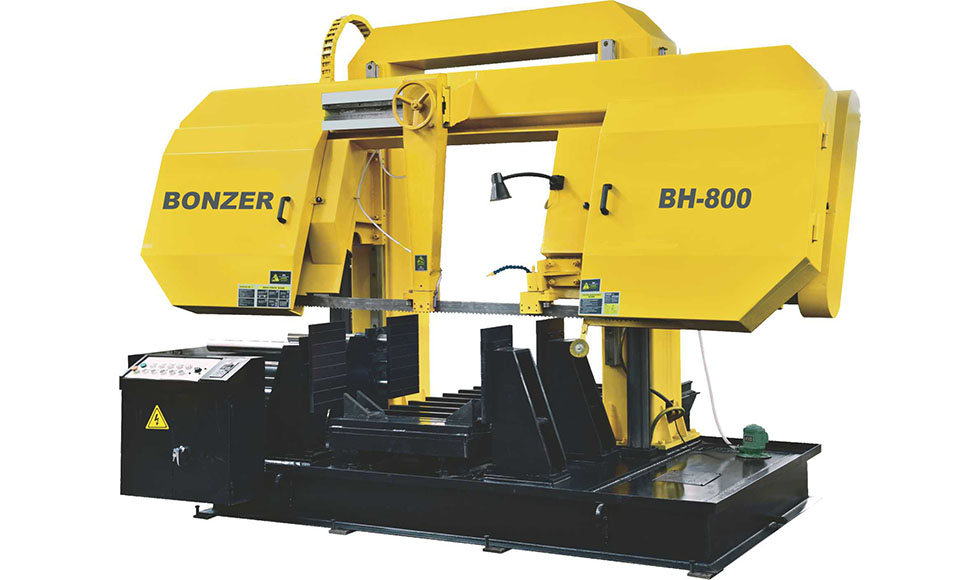

BH-800 Heavy Hydraulic shuttle table for cutting solid steel.
|
Models \ projects |
|
BH-800 |
|
Cutting capacity |
● mm |
800 |
|
■ mm L*H |
800×800 |
|
Blade Speed |
m/min |
18-80 by inverter |
|
Blade tension and blade guide |
|
Hydraulic automatic tensioning |
|
Blade Size |
mm |
8860×67×1.6 |
|
Motor(Taiwan brand) |
Blade drive |
11kw(15HP) |
|
Hydraulic pump |
2.2kw(5HP) |
|
Cutting fluid |
0.2kw(1/4HP) |
|
Machine Size |
L×W×H |
4500×2300×3150mm |
|
|
|
|
|
Machine Weight |
kgs |
9000 |
（Standard Features）
-
Blade break/blade stall shut-off
-
Automatic hydraulic blade tensioining
-
Power driven blade cleaning brush
-
Coolant flushing hose
-
Saw frame height selector gauge
-
Cut indicator light
-
Hydraulically actuated carbide blade guides
-
Power roller table 2M long
-
Powered movable guide arm with hydraulic lock
-
Inboard and outboard vising on both sides of the blade
-
Infinitely variable blade speed by inverter
-
Automatic chip conveyor
-
One piece of bi-metal saw blade
-
One set of tools and tool box.
(Optional Equipment)
1. Variable vice pressure for cutting different thick tube
2. Automatic chip conveyor.
3. Power roller table 2M long
