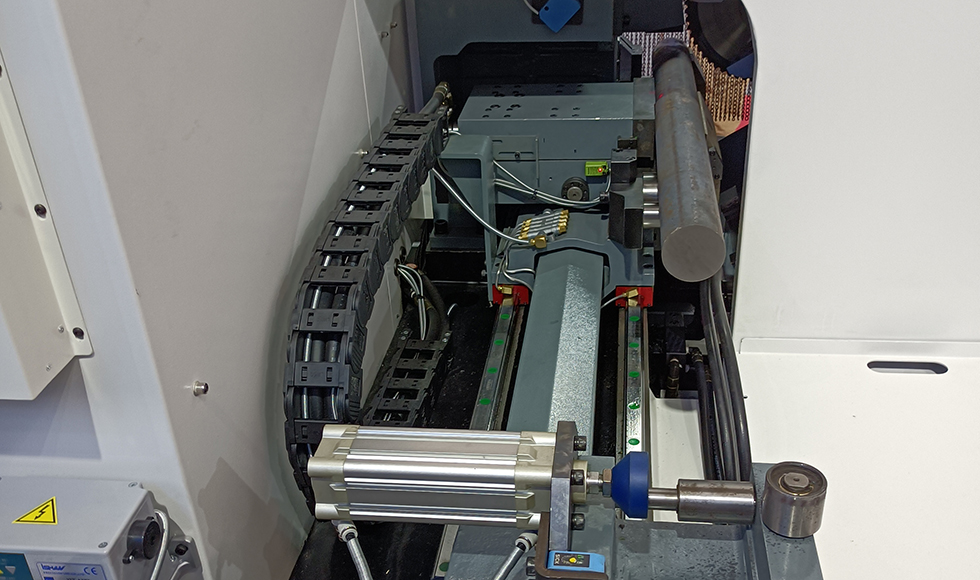

Linear Guide Type BC-120NCLinear Guide Type

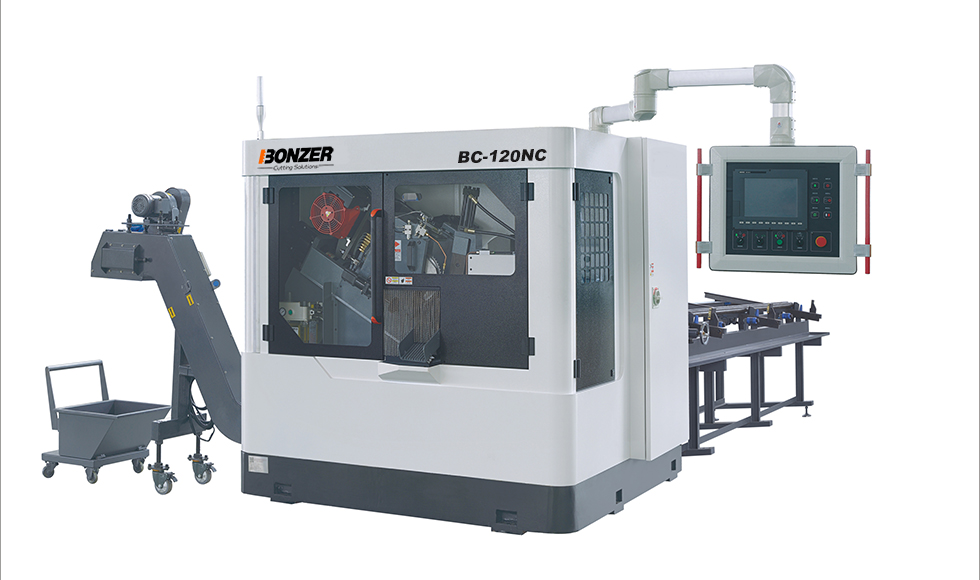

NC HIGH SPEED HEAVY DUTY CARBIDE CIRCULAR SAW
(HYDRAULIC & SERVO MOTOR FEEDRATE)
(HYDRAULIC & SERVO MOTOR FEEDRATE)
| Cut-off Capacity | BC-120NC |
| Round Bar ● | 25 ~ 120mm |
| Square Bar ■ | 25 ~ 80 mm |
| Round Tube ○ | 25 ~120 mm |
| Square Tube □ | 25 ~ 80 mm |

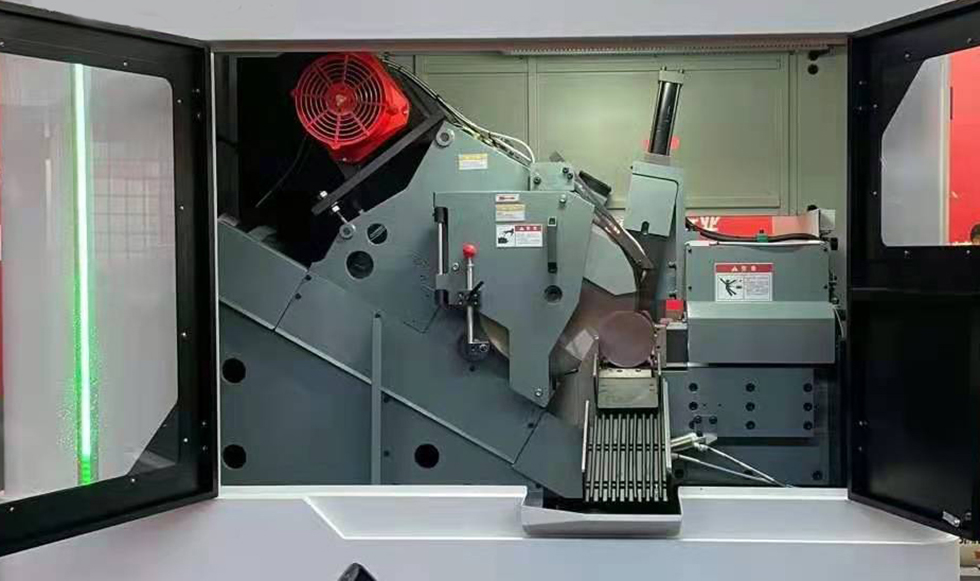

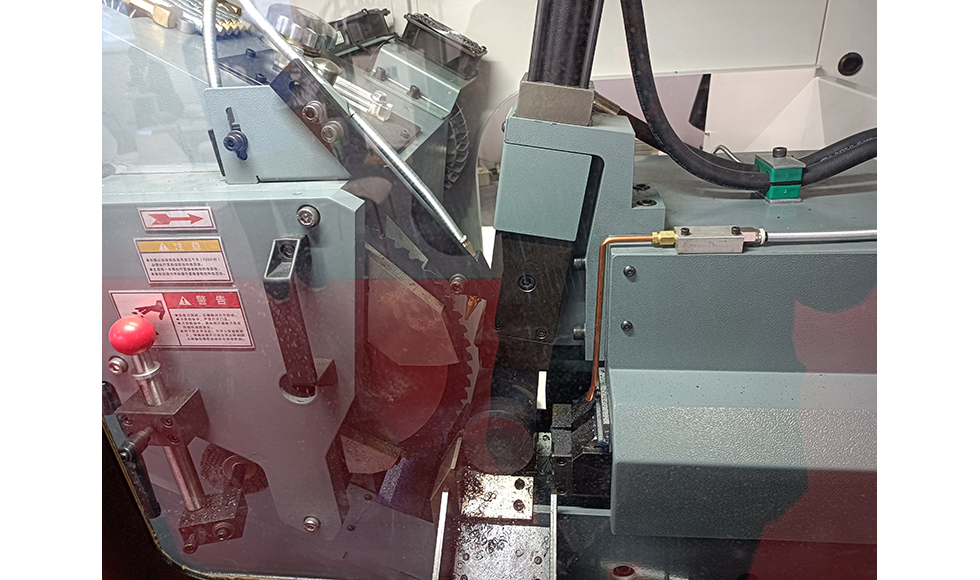

| Saw Head & Spindle | |
| TCT Carbide tipped sawblade | Ø360/380 x 2.6 t mm |
| Sawblade rotation speed | 40-160 rpm / Variable speed |
|
Chip removal Single stroke Multiple Stroke |
Steel brush disk 10-800mm 3000~6000mm |
| Motor | |
| Spindle driving motor | 15 kw (20Hp) / 4p |
| Hydraulic pump motor | 2.2 kw (5Hp) / 4p |
| AC servo motor / Saw head | 2.2kw (Mitsubishi) |
| Sawblade rotation speed | 40-160rpm / Variable speed via frequency inverter |
| Coolant pump motor | 0.19 kw / 4p |
| Hydraulic Device | |
| Work driving pressure | 70kg/cm2 (7MPa) |
| Tank Capacity | 150 liters |
| Pneumatic Device | |
| Work operating pressure | 4 ~ 6 kg/cm2 |
| Others | |
| Dimension (L x W x H) | 7200 x 3900mm |
| Main machine | 4800 kgs |
|
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice. |
|
