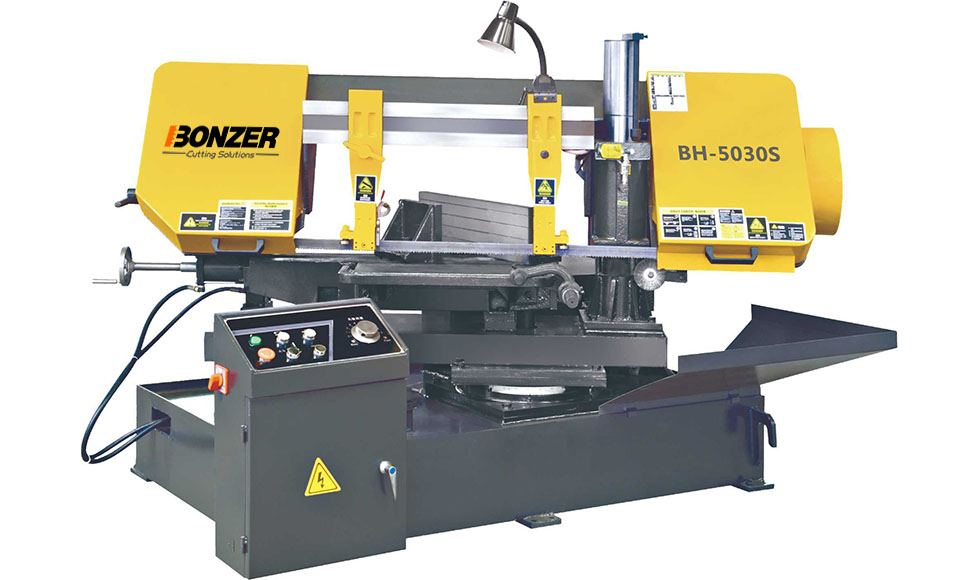

Heavy Duty Miter Cutting BH-5030SHeavy Duty Miter Cutting
BH-5030S miter cutting band saws Specifications
| Model Name | BH-5030S Semi-automatic miter cutting band saws | |||||
|
Max.cutting capacity |
angle | 0° to 45° | ||||
| Round ◎ | 300mm | -45° | 300mm | |||
| Square □ | 500×300mm | 300×300mm | ||||
| Saw blade | Speed | 27/45/69 M/min by inverter | ||||
| Size | 4200×34×1.1 | |||||
| Guides | Carbide and bearing blade guides | |||||
| Cleaning | wire brush & flood coolant | |||||
| Tension | Manual | |||||
| Motor output | Blade | 3.0kw | ||||
| Hydraulic | 0.75kw | |||||
| Coolant | 0.075kw | |||||
| Work feeding | Manual | |||||
| Work Vice | Hydraulic and Manual | |||||
| Machine Weight | 800kg | |||||
| Packing Size(L×W×H) | 2150×1350×1400 | |||||
| Container Loads | 3sets/one 20ft container | |||||
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
