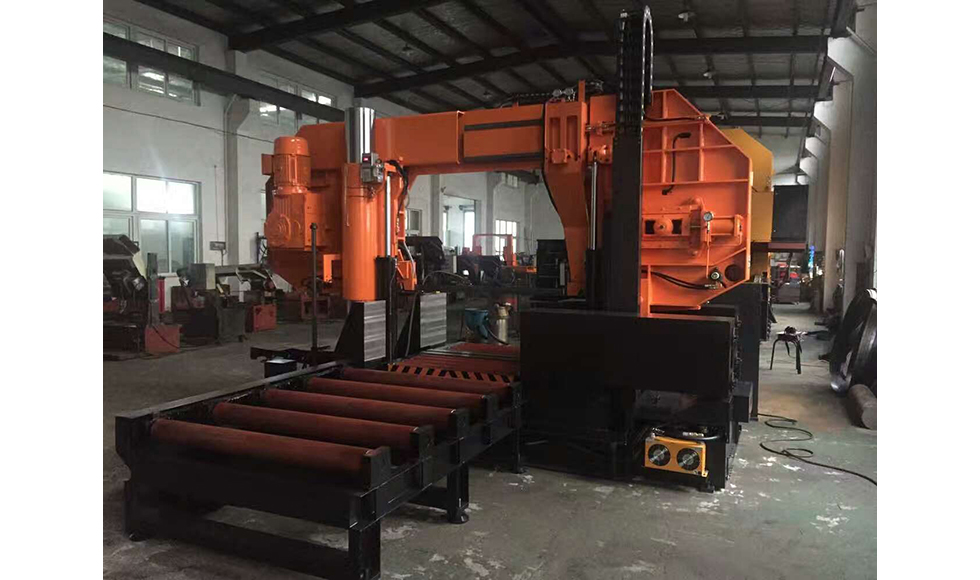

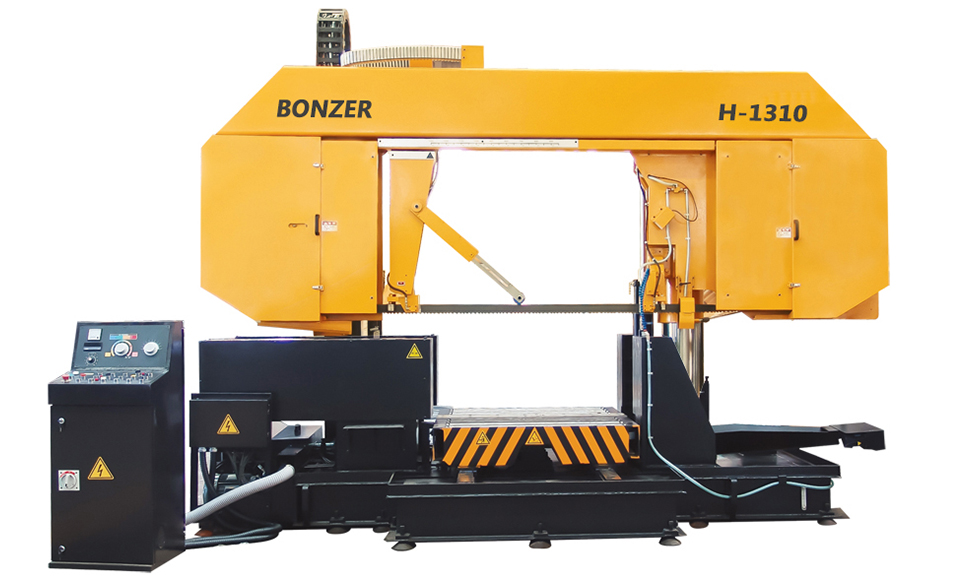

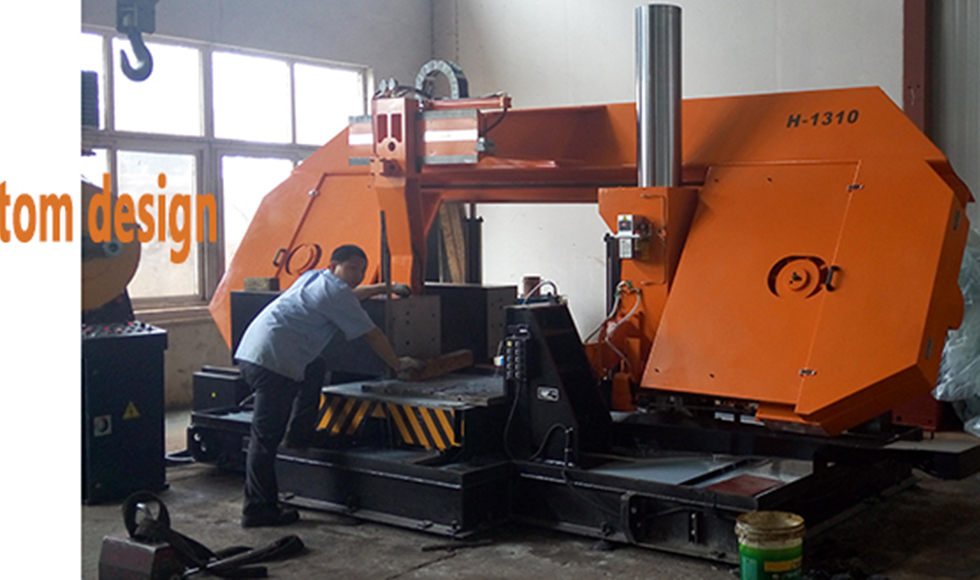

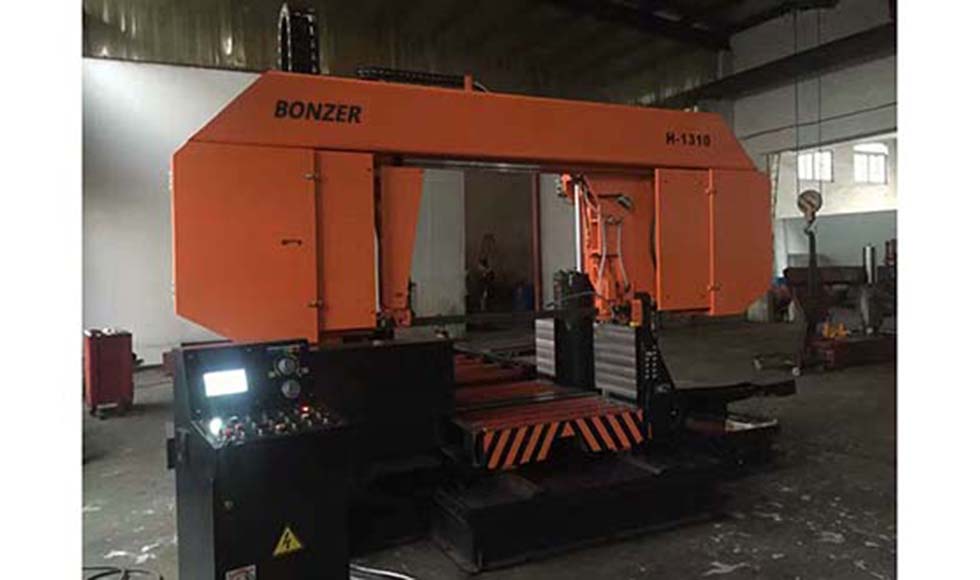

Taiwan type H-1310Taiwan type
| Model | H-1310 | |
| Capacity | ● | 1000 mm |
| ■ |
1300 x 1000 mm〔rectangular MAX.1030*1030mm〕 min. clamp width 500 mm |
|
| Blade Speed | 15 to 80 m/min. (INVERTER) | |
| Motor | Blade Drive | 11.2 kW |
| Hyd. Pump | 3.7 kW | |
| Coolant Pump | 0.2 kW | |
| Blade Size | 10000 x 67 x 1.6 mm | |
| Blade Tension | Hydraulic tensioning | |
| Moveable table size | 1435×1270mm | |
| Index Length | 600 mm | |
| Machine Weight | 12000 kg | |
| Floor Space (L x W) | 5600×2300×3050mm | |
