Economical type BH-280 Economical type

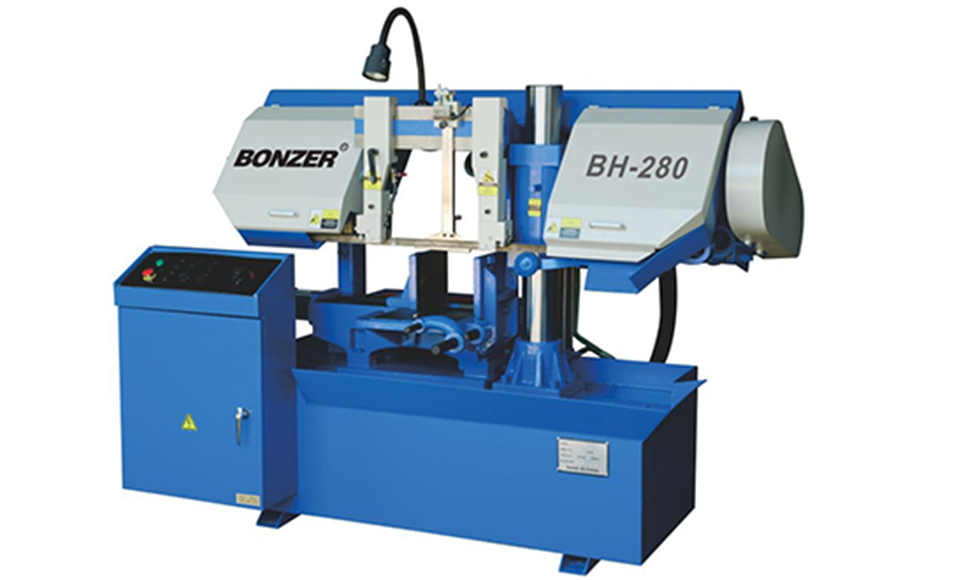

BH-280 Semi-automatic band sawing machine
| Model | BH-280 | |
| Capacity | Round | 280 mm (11") |
| Square | 350 x 280 mm (13.8" W x 11" H) | |
| Blade Speed | 25, 45, 75 m/min (80, 180, 250 fpm) | |
| Motor | Blade Drive | 2.2 kw (3HP) |
| Hyd. Pump | 0.37 kw (0.5HP) | |
| Coolant Pump | 75w (0.1HP) | |
| Blade Size | 3505 x 27 x 0.9 mm | |
| Blade Tension | Manual | |
| Index Length | - | |
| Machine Weight | 900 kg | |
| Floor Space (L x W) | 1800 x 1200 x1200 mm | |
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
