Taiwan type H-5550Taiwan type

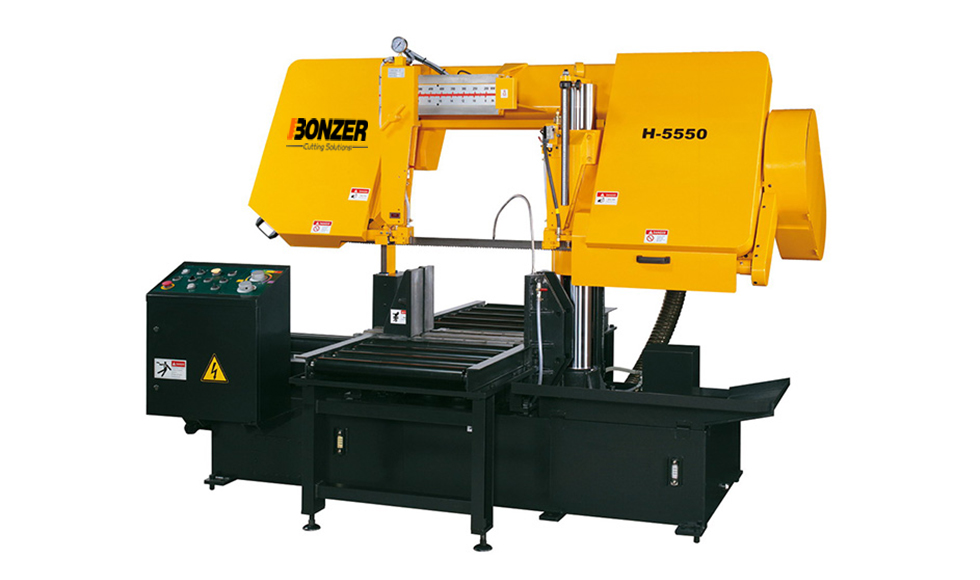

Semi-automatic Column Typa Band Saw H-5550
| Model | H-5550 | |
| Capacity | ● | 500 mm (20") |
| ■ | 550 x 500 mm (22" W x 20" H) | |
| Blade Speed | 17, 25, 35, 45, 65, 75 m/min (55, 80, 115, 150, 180, 215, 250 fpm) | |
| Motor | Blade Drive | 5.5 kw (7.5HP) |
| Hyd. Pump | 1.5 kw (2HP) | |
| Coolant Pump | 0.2 kw (1/4HP) | |
| Blade Size | 4880 x 41 x 1.3 mm (192" x 1.6" x 0.05") | |
| Blade Tension | Hydraulic | |
| Index Length | - | |
| Machine Weight | 2100 kg (4620 lb) | |
| Floor Space (L x W) | 2550 x 1900 mm (98.4" x 74.8") | |
