Economical type BH-5030 Economical type

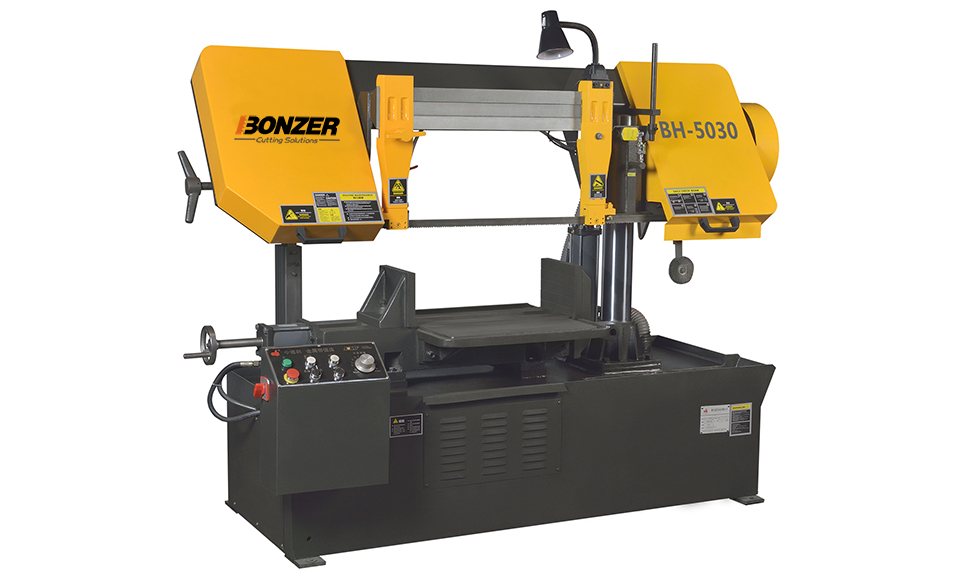

BH-5030 Semi Automatic Band Saws Specifications
Model Name Semi Automatic Band Saws BH-5030
Max. cutting
Round    ◎● 300mm
Quadrate  □■ 500×300mm
Saw Blade
Speed 20/35/45/60/75M/min
Size 34×1.1×4115mm
Guides Carbide and bearing blade guides
Cleaning Power wire brush & flood coolant
Tension Manual tension saw blade
Motor output Blade 3.0kw
Hydraulic 0.75kw
Coolant 0.06kw
Work Vise Hydraulic jaw vise
Machine Weight 1100kg
Packing Size(L×W×H) 2200×1100×1400mm
Container Loads 10sets/one 40”container
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
