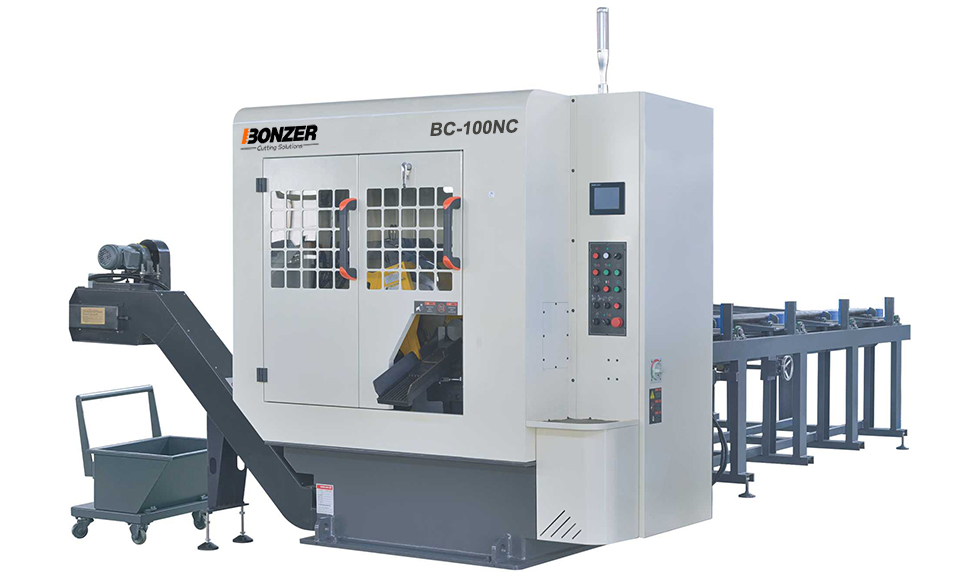

Pivot/Hinge Type BC-100NCPivot/Hinge Type
NC HIGH SPEED HEAVY DUTY CARBIDE CIRCULAR SAW
(HYDRAULIC & SERVO MOTOR FEEDRATE)
(HYDRAULIC & SERVO MOTOR FEEDRATE)
| Cut-off Capacity | BC-100NC |
| Round Bar ● | 20 ~ 102 mm |
| Square Bar ■ | 20 ~ 80 mm |
| Round Tube ○ | 20 ~ 102 mm |
| Square Tube □ | 20 ~ 80 mm |

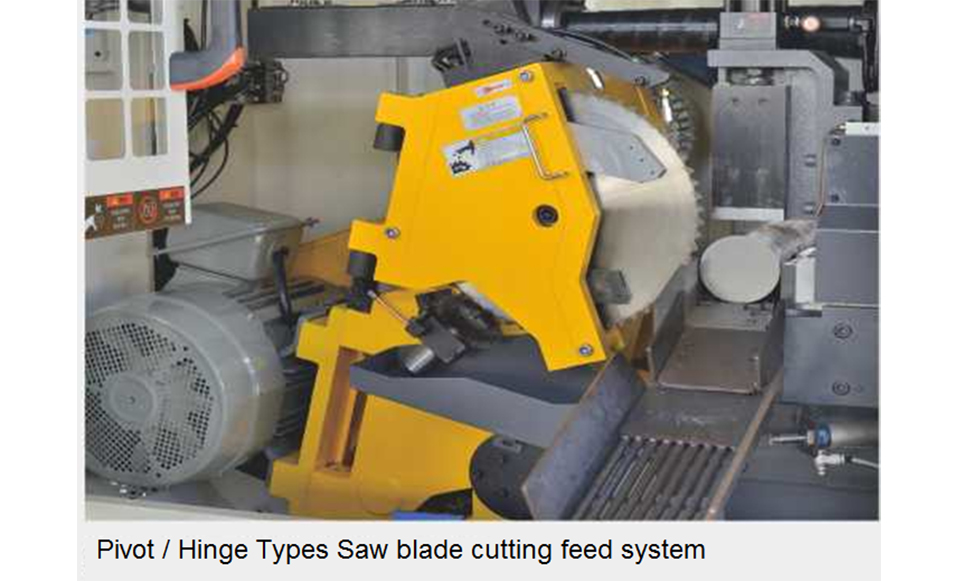

| Saw Head & Spindle | |
| TCT Carbide tipped sawblade | Ø360 x 2.6 t mm |
| Sawblade rotation speed | 20-120 rpm / Variable speed |
|

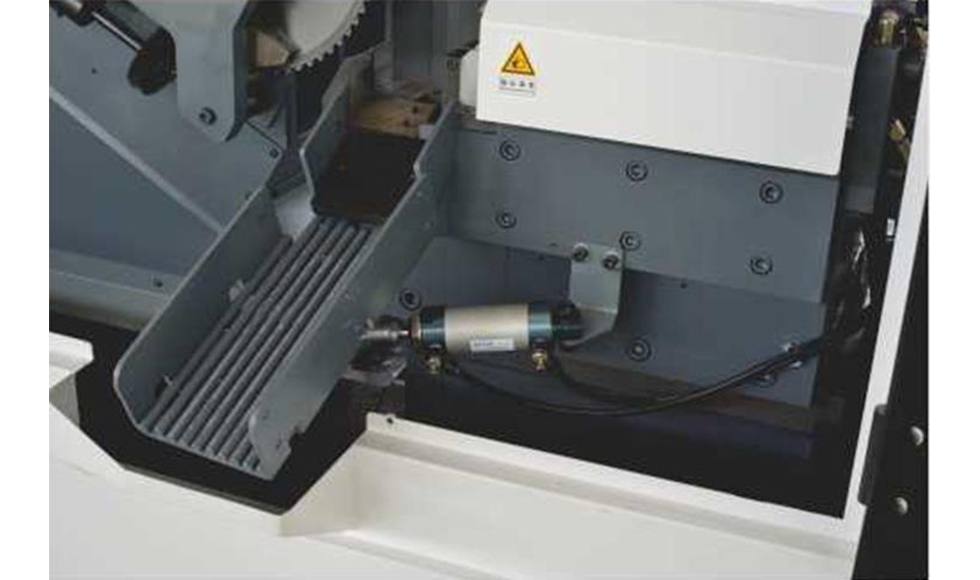

Chip removal Single stroke Multiple Stroke |
Steel brush disk / Dual type 10-680mm 3000~6000mm |
| Motor | |
| Spindle driving motor | 11 kw (20Hp) / 4p |
| Hydraulic pump motor | 2.2 kw (5Hp) / 4p |
| AC servo motor / Saw head | 2.2kw (Mitsubishi) |
| Sawblade rotation speed | 20-120rpm / Variable speed via frequency inverter |
| Coolant pump motor | 0.19 kw / 4p |
| Hydraulic Device | |
| Work driving pressure | 70 kg/cm2 (7 MPa) |
| Tank Capacity | 150 liters |
| Pneumatic Device | |
| Work operating pressure | 4 ~ 6 kg/cm2 |
| Others | |
| Dimension (L x W x H) | 6500 x 2450 x 2160 mm |
| Main machine | 5080 kgs |
| * All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice. | |
