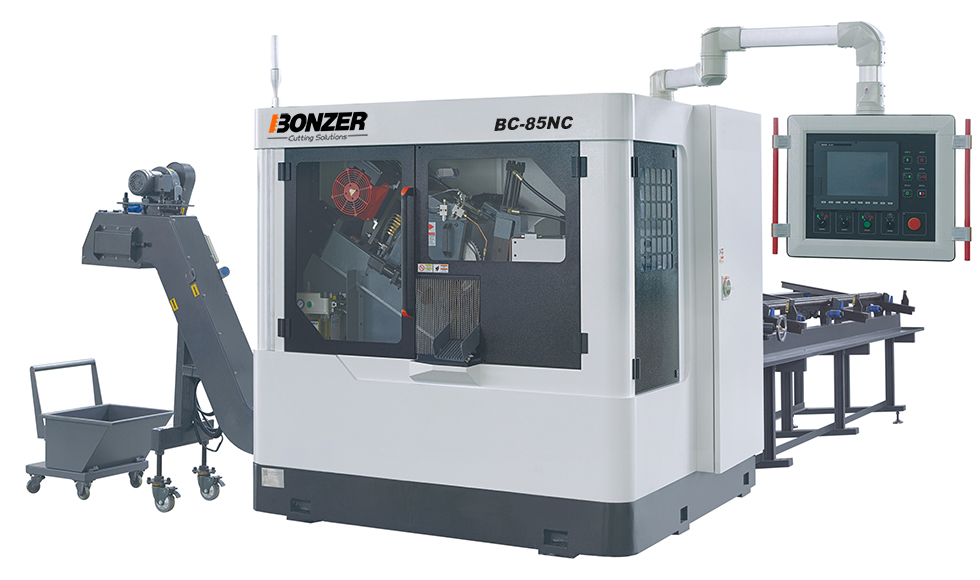

NC HIGH SPEED HEAVY DUTY CARBIDE CIRCULAR SAW
(HYDRAULIC & SERVO MOTOR FEEDRATE)
Specification
|
Cut-off Capacity |
BC-85NC |
|
Round Bar ● |
10 ~ 85mm |
|
Square Bar ■ |
10 ~ 65mm |
|
Round Tube ○ |
10 ~85mm |
|
Square Tube □ |
10 ~ 65mm |
|
Saw Head & Spindle |
|
TCT Carbide tipped sawblade |
Ø285/315x 2.0 t mm |
|
Sawblade rotation speed |
20-180 rpm / Variable speed |
Chip removal
Single stroke
Multiple Stroke |
Steel brush disk
6-800mm
3000~6000mm |
|
Motor |
|
Spindle driving motor |
9.5 kw / 4p |
|
Hydraulic pump motor |
2.2 kw / 4p |
|
AC servo motor / Saw head |
1.5kw (Mitsubishi) |
|
Sawblade rotation speed |
20-180rpm / Variable speed via frequency inverter |
|
Coolant pump motor |
0.19 kw / 4p |
|
Hydraulic Device |
|
Work driving pressure |
70kg/cm2 (7MPa) |
|
Tank Capacity |
90 liters |
|
Pneumatic Device |
|
Work operating pressure |
4 ~ 6 kg/cm2 |
|
Others |
|
Dimension (L x W) |
7100 x 2200mm |
|
Main machine |
2750 kgs |
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
Machine Feature
1. Mechatronics Control
2. Cutting Faster
3. Enhance Blade Service Life
4. Less Material Consuming

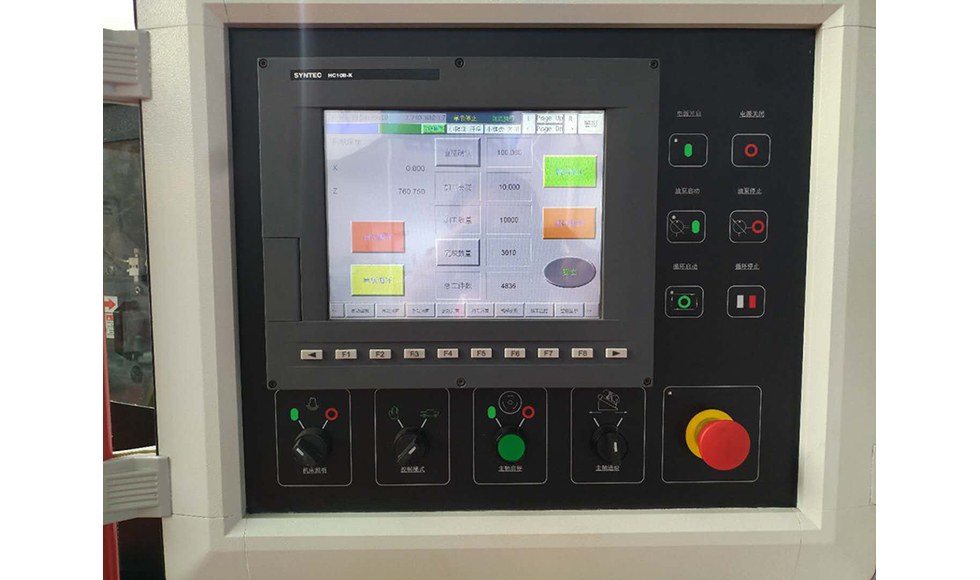

5. PLC control panel with touch screen;
6. hydraulic front and vertical vise;
7. pendulum device;
8. automatic loading table;
9. material absence sensor;
11. lubrication with oil mist under the action of compressed air;
12. adjustment of vice pressure
13. hydraulic sorting tray;
14. driven brush for chip cleaning;
15. inverter drive;
16. automatic chain chip conveyor;
17. halogen working backlight;
18. Tool kit.
19. Requires technical air for the machine.
Standard Equipment:
1. Sawblade 1 pc
2. Wire brush 2 pcs
3. Working lamp 1 set
4. Tools with tool box 1 set
5. Instruction manual 1 copy
6. Auto chip conveyor 1set
7. Bar stock reservoir and loader
Optional Equipment:
1. Long cut-off pieces unloading table
2. Chain belt magazine table for flat work-piece
3. Air filter of oil mist;
