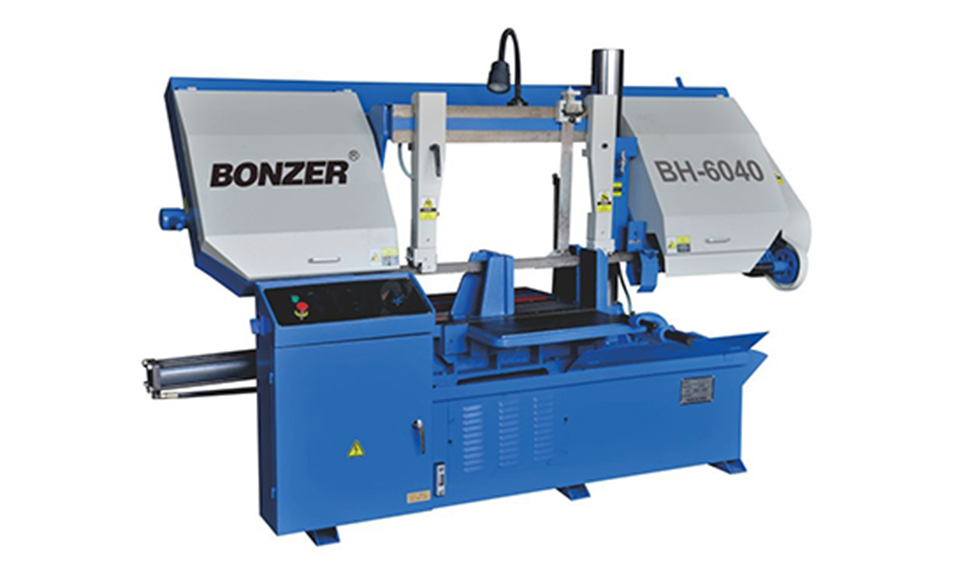

Economical type BH-6040 Economical type
Semi-automatic Column Typa Band Saw BH-6040
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
| Model | BH-6040 | |
| Capacity | ● | 400 mm (15.8") |
| ■ | 600 x 400 mm (23.6" W x 15.8" H) | |
| Blade Speed | 25, 45, 75 m/min (80, 180, 250 fpm) | |
| Motor | Blade Drive | 4 kw (5HP) |
| Hyd. Pump | 0.75 kw (1HP) | |
| Coolant Pump | 75w (0.1HP) | |
| Blade Size | 5510 x 41 x 1.3 mm | |
| Blade Tension | Manual | |
| Index Length | - | |
| Machine Weight | 1600 kg | |
| Floor Space (L x W) | 2700 x 1200 x1650 mm | |
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
