Economical type BH-7040 Economical type

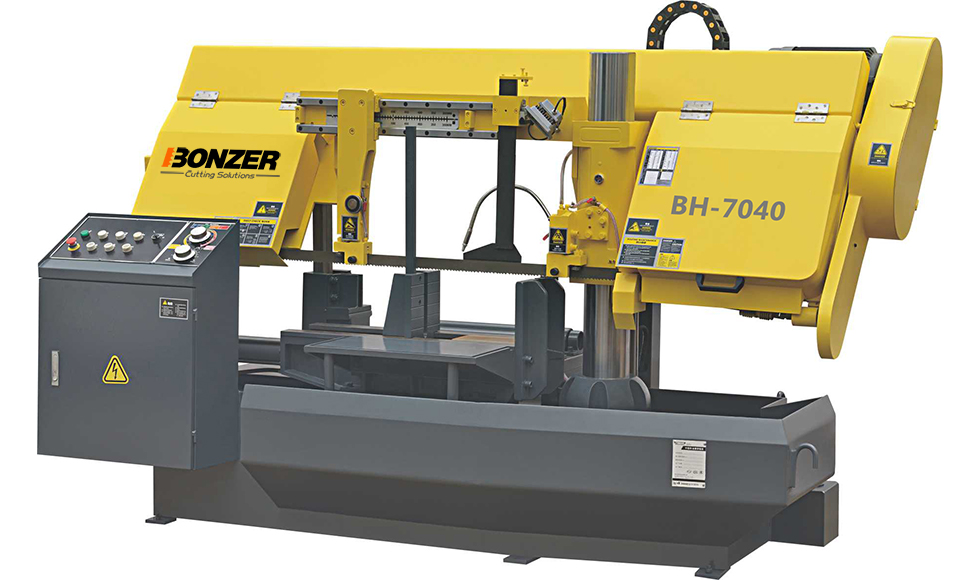

BH-7040 Semi Automatic Band Saws Specifications
The BH-7040 is designed for particular cutting, such as die steel and H-beam,
The BH-7040 is designed for particular cutting, such as die steel and H-beam,
| Model Name | BH-7040 Semi Automatic Band Saws | |
|
Max. cutting capacity |
Round ◎● | 400mm |
| Quadrate □■ | 700×400mm | |
|
Saw Blade |
Speed | 20/35/45/60/75M/min |
| Size | 41×1.3×5260mm | |
| Guides | Carbide and bearing blade guides | |
| Cleaning | Power wire brush & flood coolant | |
| Tension | Manual tension saw blade | |
| Motor output | Blade | 5.5kw |
| Hydraulic | 1.5kw | |
| Coolant | 0.06kw | |
| Work Vise | Hydraulic jaw vise | |
| Machine Weight | 2100kg | |
| Packing Size(L×W×H) | 3800×1350×1700mm | |
| Container Loads | 3sets/one 40”container | |
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
