Taiwan type H-1080Taiwan type

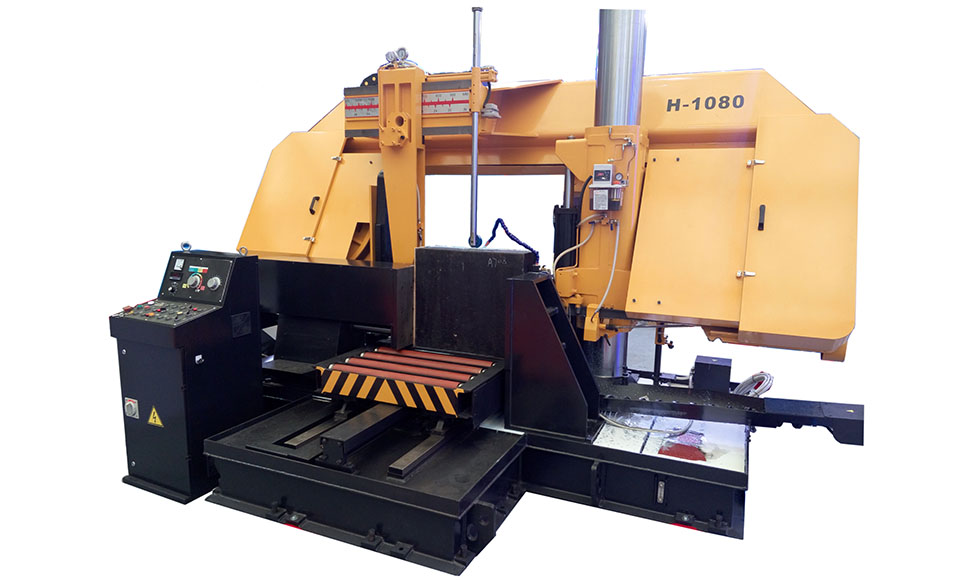

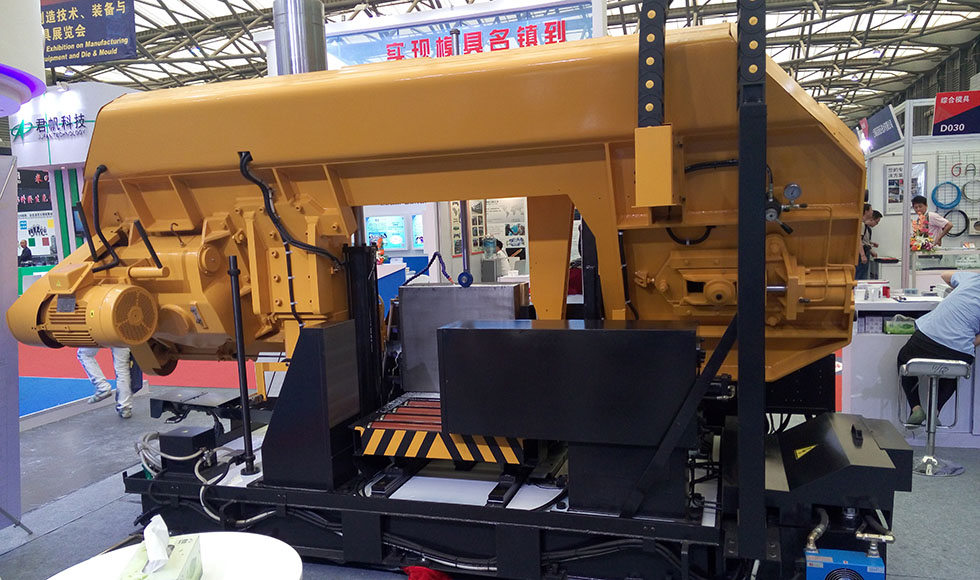

H-1080 Heavy Band saw machine
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
Machinery parts list
Machine Features

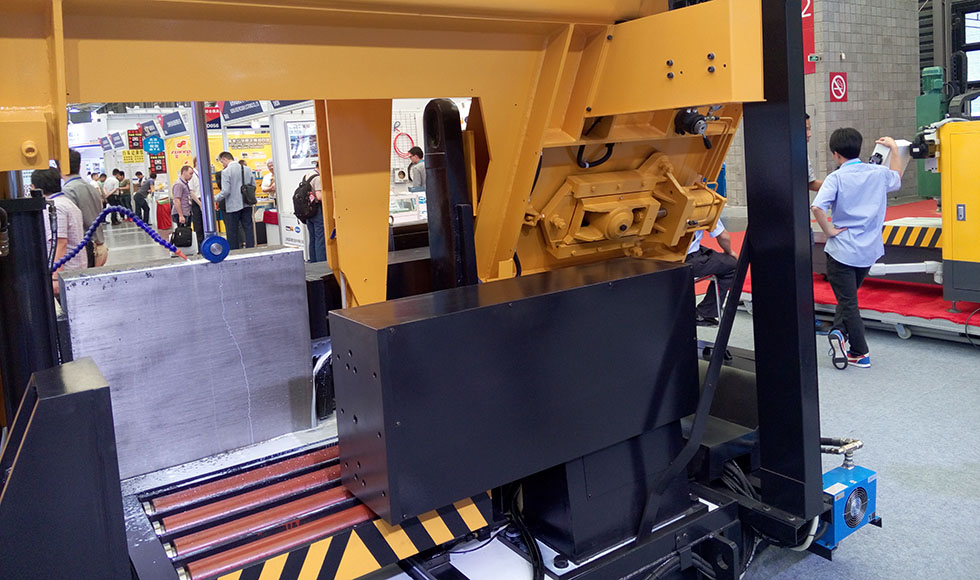

Structure
• Oversized precision ground, Big column support and guide the rugged saw head through the entire cutting cycle.
• Cross link connecting two columns for enhanced structural strength
• Dual hydraulic work vice

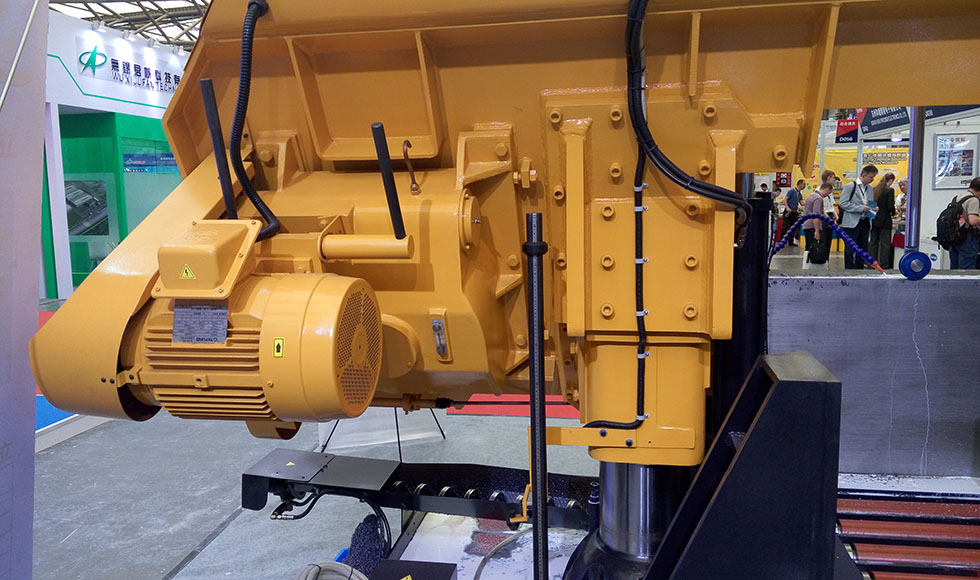

Blade Drive
• Specially designed gearbox for high lateral pressure
• Inverter controlled infinitely variable blade speed
Blade Guidance & Lubrication System
• Carbide blade guides with bearing guides
• Two additional guides to support the blade from the top
• Automatic hydraulic blade tensioning device
• Integral coolant system
• Pitch design for coolant drainage
• Power blade brush
Material Feeding & Clamping
• Hydraulic front and rear vises
• Ductile cast iron vises with replaceable hardened wear plates
Safety
• Proximity switch for sensing blade slippage or breakage
• Interlock design in electrical and hydraulic system
• Conduits protection measure
• "Alert Orange" safety measure
Standard Accessories
• Additional flushing hose
• Bi-metal saw blade
• Built in work light
• Tool box, and an additional wire brush
• Operation & parts manual
| Model | H-1080 | |
| Capacity | ● | 800 mm |
| ■ |
1000 x 800 mm min. clamp width 460 mm |
|
| Blade Speed | 15 to 90 m/min. (INVERTER) | |
| Motor | Blade Drive | 11.2 kW (20HP) |
| Hyd. Pump | 3.7 kW (5HP) | |
| Coolant Pump | 0.2 kW (1/4HP) | |
| Blade Size | 8800 x 67 x 1.6 mm (484" x 26" x 0.063") | |
| Blade Tension | Hydraulic tensioning | |

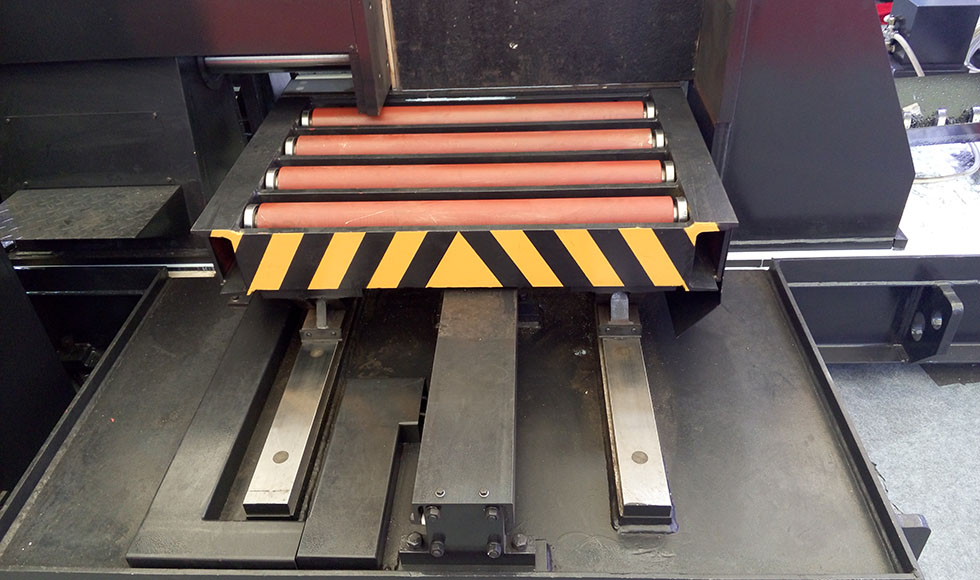

| Moveable table size | 1435×970mm | |
| Index Length | 500 mm | |
| Machine Weight | 8000 kg | |
| Floor Space (L x W) | 4150×2300×2800mm | |
Machinery parts list
| Item | Name | Specification | Quantity | Manufacturer |
| 1 | Frequency motor for main motor use | 11 kw | 1 set | Taiwan TECO |
| 2 | Transducer (inverter) | 11 kw | 1 set | Taiwan SHIHLIN |
| 3 | Main hydraulic parts (oil pump motor group; magnetic valves) | 1 Unit |
SEVENOCEAN(Taiwan) OIL Motor CHYUN TSEN(Taiwan) |
|
| 6 | Worm gear box | 1 Unit | Taiwan TECO | |

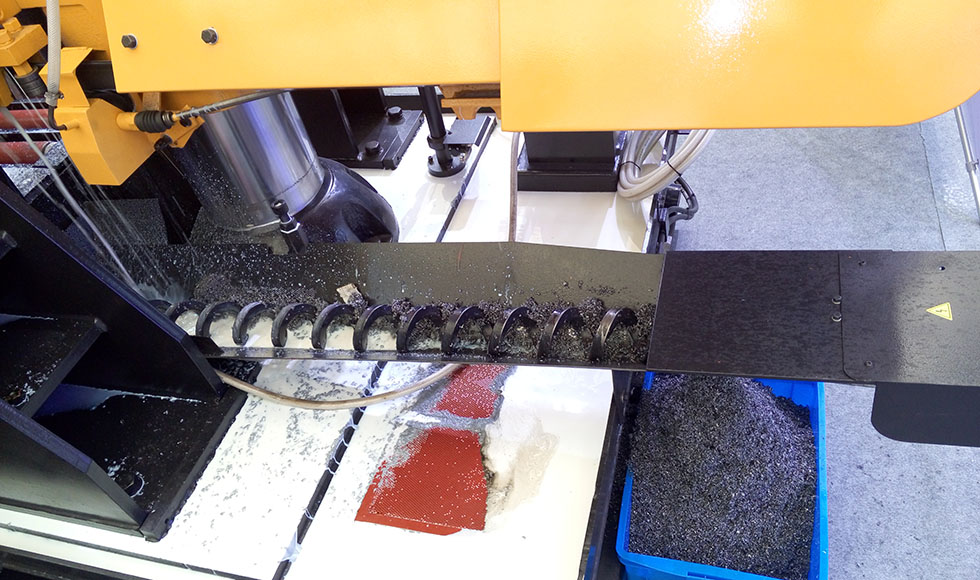

| 7 | chip conveyor | 1 set | Yiantai Chongyan machinery | |
| 8 | Bearing | NSK or NTN (Japan) | ||

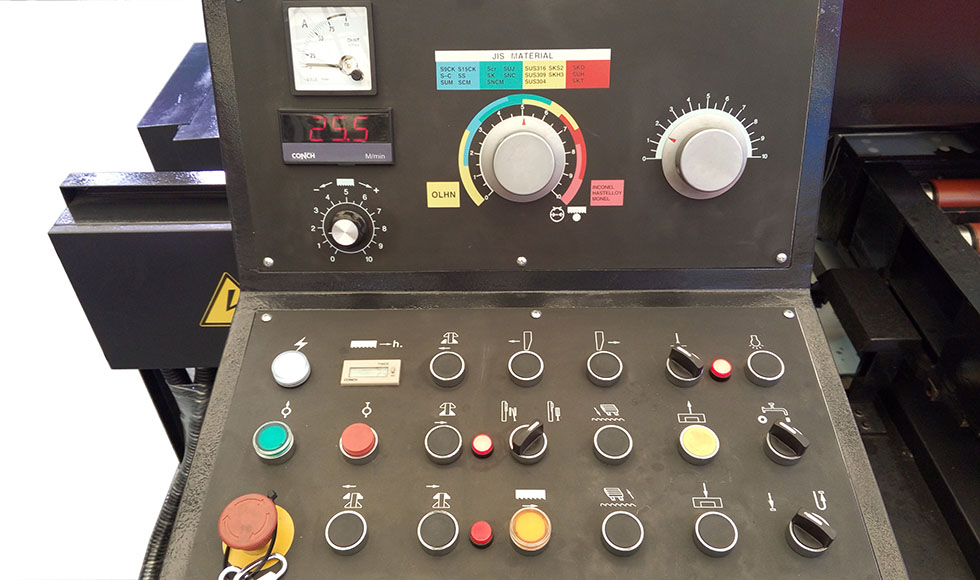

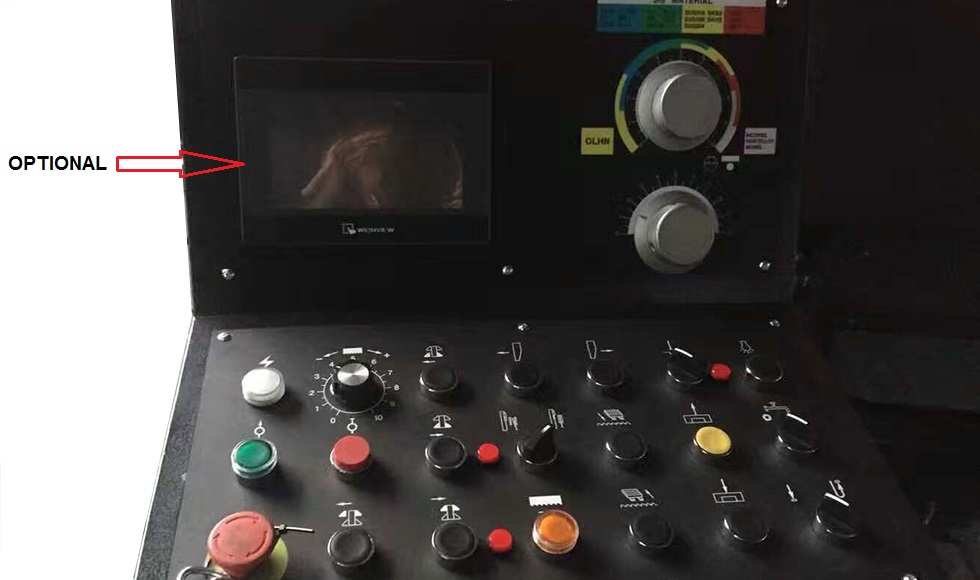

| 9 | Control electrical device | 1 Unit |
PLC OMRON (Japan)
Contactors: TECO(Taiwan)
Switches: Schneider Electric |
