Taiwan type H-1613Taiwan type

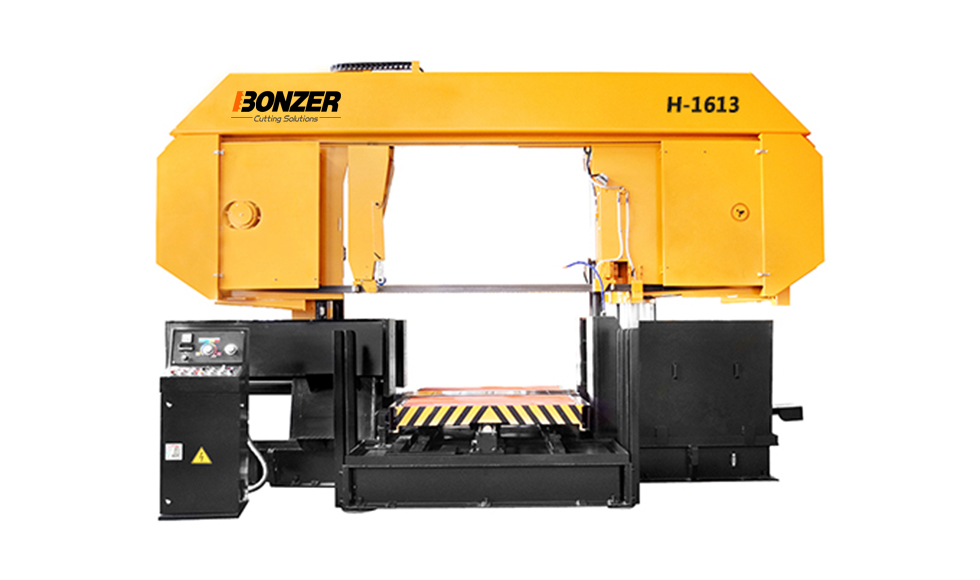

H-1613 Heavy Band saw machine
| Model | H-1613 | |
| Capacity | ● | 1300 mm (52") |
| ■ |
1600 x 1300 mm (63" W x 52" H) min. clamp width 710 mm (27.5") |
|
| Blade Speed | 15 to 70 m/min (50 to 230 fpm) (INVERTER) | |
| Motor | Blade Drive | 15 kW (20HP) |
| Hyd. Pump | 3.7 kW (5HP) | |
| Coolant Pump | 0.2 kW (1/4HP) | |
| Blade Size | 13000 x 80 x 1.6 mm (511" x 3" x 0.063") | |
| Blade Tension | Hydraulic | |
| Index Length | 600 mm (23.6") | |
| Machine Weight | 20000 kg (44000 lb) | |
| Floor Space (L x W) | 5950 x 2800 mm (234" x 110") | |
Machinery Main parts list
| Item | Name | Specification | Quantity | Manufacturer |
| 1 | Frequency motor for main motor use | 15 kw | 1 set | Germany SEW |
| 2 | Transducer (inverter) | 15 kw | 1 set |
Taiwan SHIHLIN or SIEMENS |
| 3 | Main hydraulic parts (oil pump motor group; magnetic valves) | 1 Unit |
SEVENOCEAN(Taiwan) OIL Motor CHYUN TSEN(Taiwan) |
|
| 6 | Gear box | 1 Unit | Taiwan TECO | |
| 7 | chip conveyor | 1 set | Yiantai Chongyan machinery | |
| 8 | Bearing | NSK or NTN (Japan) | ||

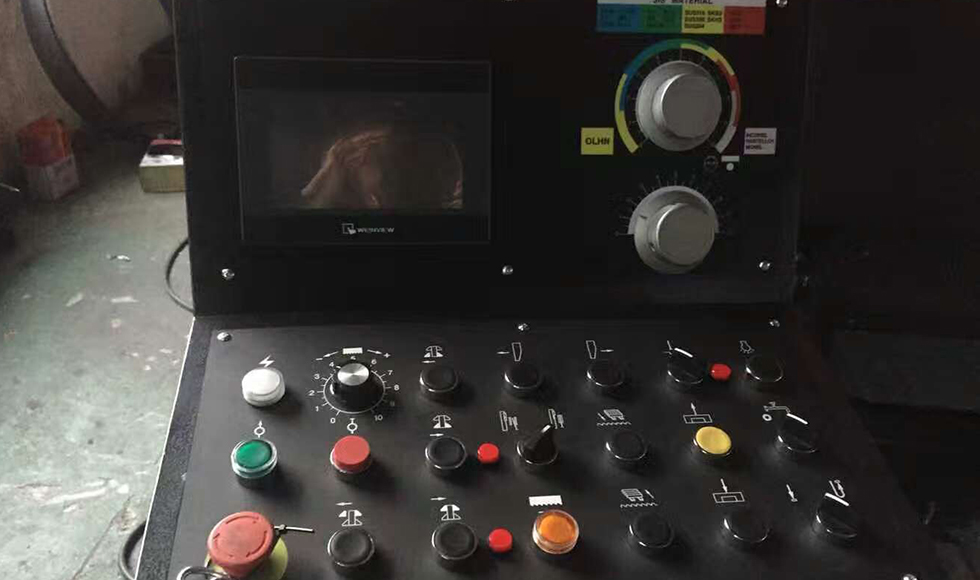

| 9 | Control electrical device | 1 Unit |
PLC MITSUBISHI (Japan)Contactors: TECO(Taiwan)Switches: Schneider Electric |
