Linear Guide Type BC-150NCLinear Guide Type

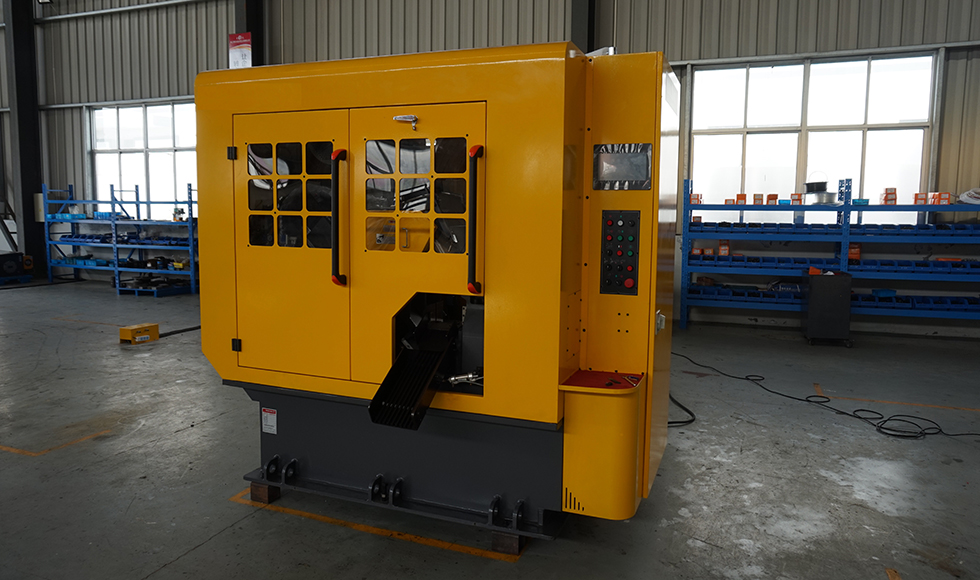

NC HIGH SPEED HEAVY DUTY CARBIDE CIRCULAR SAW
(HYDRAULIC & SERVO MOTOR FEEDRATE)
Specification(HYDRAULIC & SERVO MOTOR FEEDRATE)
| Cut-off Capacity | HY-150NC |
| Round Bar ● | 40 ~ 153 mm |
| Square Bar ■ | 40 ~ 110 mm |
| Round Tube ○ | 40 ~ 153 mm |
| Square Tube □ | 40 ~ 110 mm |

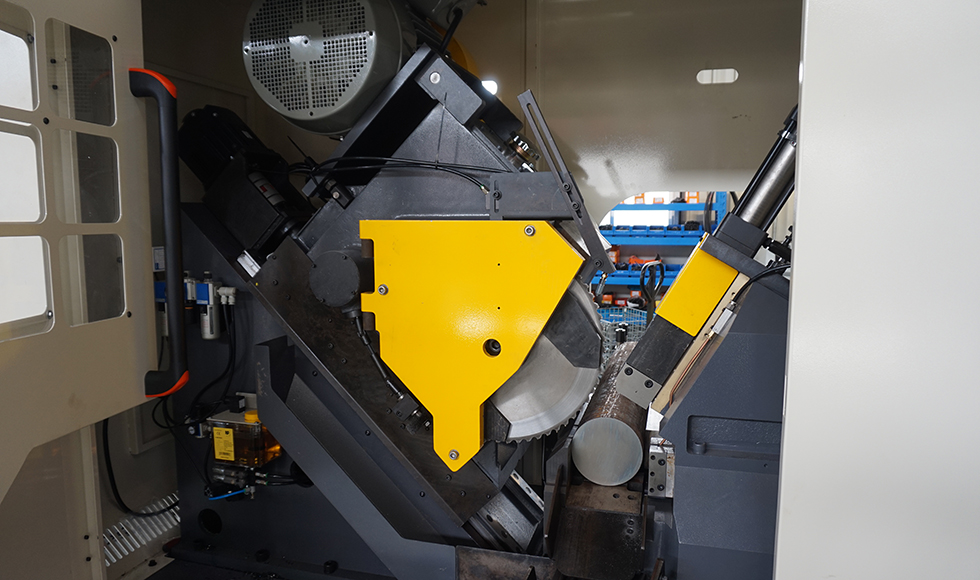

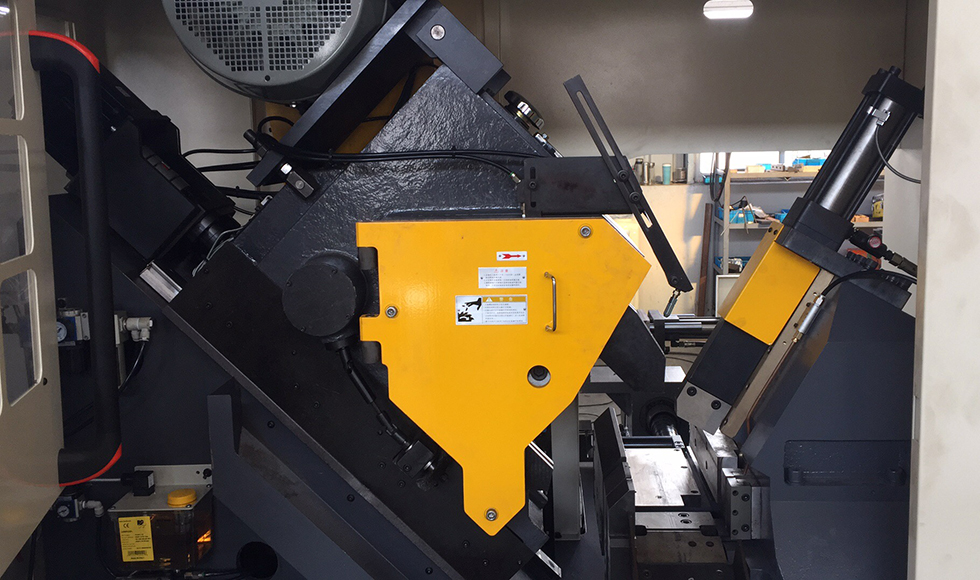

| Saw Head & Spindle | |
| TCT Carbide tipped sawblade | Ø460 x 2.7 t mm |
| HSS High-speed steel sawblade type | Ø450 / 5 t (max.) |
| Sawblade rotation speed | 60-90 rpm / Variable speed |
| Chip removal | Steel brush disk / Dual type |
| Motor | |
| Spindle driving motor | 15 kw (20Hp) / 4p |
| Hydraulic pump motor | 3.75 kw (5Hp) / 4p |
| AC servo motor / Saw head | 3.5 kw (Mitsubishi) |
| Sawblade rotation speed | 60-90 rpm / Variable speed via frequency inverter |
| Coolant pump motor | 0.19 kw / 4p |
| Hydraulic Device | |
| Work driving pressure | 70 kg/cm2 (7 MPa) |
| Tank Capacity | 150 liters |
| Pneumatic Device | |
| Work operating pressure | 4 ~ 6 kg/cm2 |
| Others | |
| Dimension (L x W x H) | 7580 x 2270 x 2260 mm |
| Main machine | 5280 kgs |
