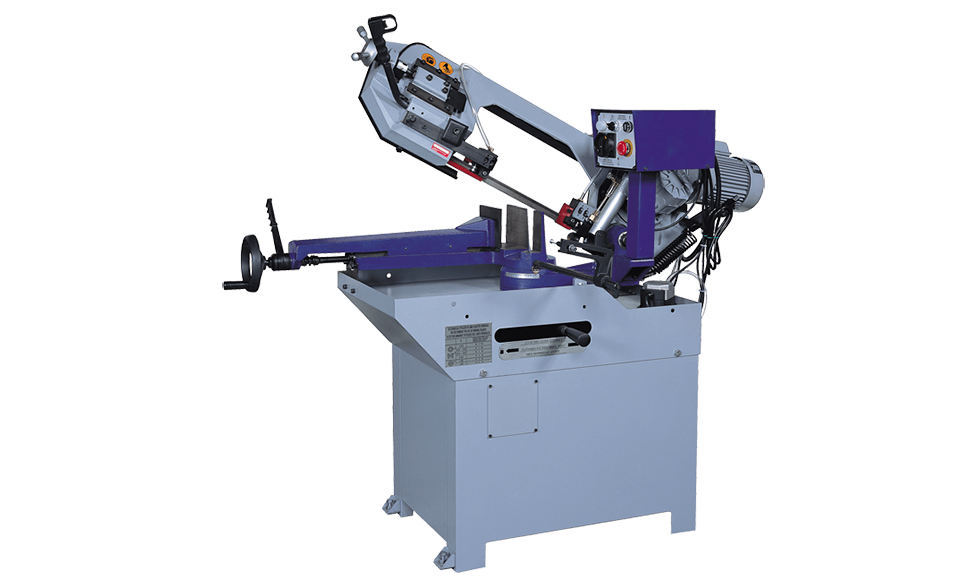

Pivot Type BS-260SHPivot Type
Single Miter Cutting BS-260SH
H220 W260
Angle cutting 0ﾟ~60ﾟ
Manual vise clamping
Two Blade speeds selection (S/SH)
Inverter controls variable blade speed (SHV)
Specifications
Capacity 90°: ● 220 mm, ▅ 215 mm, ▅▅ 110 x 260 mm
Capacity 45°: ● 150 mm, ▅ 145 mm, ▅▅ 110 x 155 mm
Capacity 60°: ● 90 mm, ▅ 85 mm, ▅▅ 80 x 95 mm
Blade Size: 27 x 0.9 x 2460 mm
Blade Speed (2 Speeds): 50 HZ 4P 72 m/min, 8P 36 m/min
Blade Speed (Inverter option): 20 ~ 85 Mpm
Blade Motor: 1.5 HP (1.1 kw)
Coolant Motor: 40 W
Container Loads: 22 units / 20', 46 units / 40'
Packing Size: 1550 x 745 x 950 mm
N.W./G.W.: 216 kg / 250 kg
