Model Name |

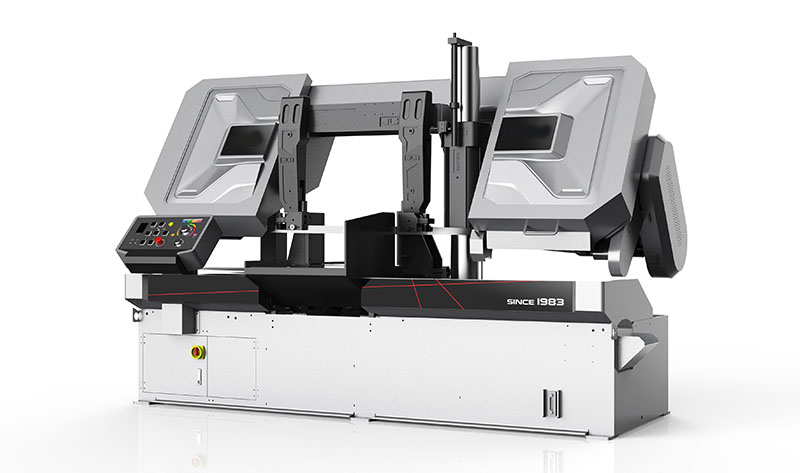

NC automatic Band Saws BH-530NC |
Max. cutting
capacity |
Round ○ |
530mm(Split front vise) |
|
Quadrate □ |
530 x 530 mm (Split front vise) |
|
Bundle cutting |
Width |
480mm |
|
Height |
260mm |
Saw Blade |
Speed |
20-80m/min |
|
Size |
6300 x 54 x 1.3mm |
|
Guides |
Carbide and bearing blade guides |
|
Cleaning |
Power wire brush & flood coolant |
|
Tension |
Hydraulic |
|
Motor output |
Blade |
7.5kw |
|
Hydraulic |
1.5kw |
|
Coolant |
135W |
|
Single feed stroke |
500mm |
|
Work Vise |
Hydraulic full stroke |
|
Machine Weight |
3000kg |
|
Packing Size(L×W×H) |
3100×2200×1950mm |
|
Container Loads |
3sets/one 40”container |
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice
STANDARD FEATURES
1. Shuttle type automatic feed.
2. User friendly NC touch screen control with self diagnostic system.
3. P.L.C. control for all electric and hydraulic function.
4. Hydraulically controlled vise full stroke clamping system.
5. Floating shuttle vise system.
6. Blade speed tachometer.
7. Hydraulic blade tensioning.
8. Roller bearing with carbide blade guide system.
9. Automatic work height control by fast approach bar sensor.
10. Preset cut counter with shut off.
11. Out of stock shut off.
12. Nesting fixture for bundle cutting.
13. Power driven blade cleaning brush.
14. Idler wheel motion detector with blade stalling and breakage shut off.
15. LED Work light.
16. One M42 bi-metal saw blade.
17. One set of tools and tool box.
18. Automatic chip conveyor.
OPTIONAL EQUIPMENT
1. Roller stock table 2M long.
